Model

ROG STRIX Z890-F GAMING WIFI

CPU

Intel® Socket LGA1851 for Intel® Core™ Ultra Processors (Series 2); Supports Intel® Turbo Boost Technology 2.0 and Turbo Boost Max Technology 3.0

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 192GB, DDR5, up to 8600 MT/s (OC); Dual Channel Memory Architecture; Supports XMP, DIMM Flex, DIMM Fit, ASUS AEMP III

Graphics

- 1 x DisplayPort (8K@60Hz)
- 1 x HDMI® (4K@60Hz)
- 2 x Intel® Thunderbolt™ 4 with DisplayPort and Thunderbolt™ video output

Expansion Slots

- 1 x PCIe 5.0 x16 slot (supports x16 or x8/x4/x4 modes)
- 1 x PCIe 4.0 x16 slot (x4 mode)

Storage

- 5 x M.2 slots (1 x PCIe 5.0 x4, 4 x PCIe 4.0 x4)
- 4 x SATA 6Gb/s ports; supports PCIe RAID 0/1/5 and SATA RAID 0/1/5/10

Ethernet

Intel® 2.5Gb Ethernet with ASUS LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be, 2x2), Bluetooth® v5.4

USB Ports

Rear (14): 2 x Thunderbolt™ 4 (USB-C), 6 x USB 10Gbps (4 x Type-A, 1 x USB-C, 1 x USB-C with 30W PD), 4 x USB 5Gbps (Type-A), 2 x USB 2.0
Front (9): 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps headers (4 ports), 2 x USB 2.0 headers (4 ports)

Audio

ROG SupremeFX 7.1 Surround Sound CODEC ALC4080; Impedance sense, Jack-detection, Gold-plated jacks, Premium capacitors, Optical S/PDIF out, Dolby Atmos

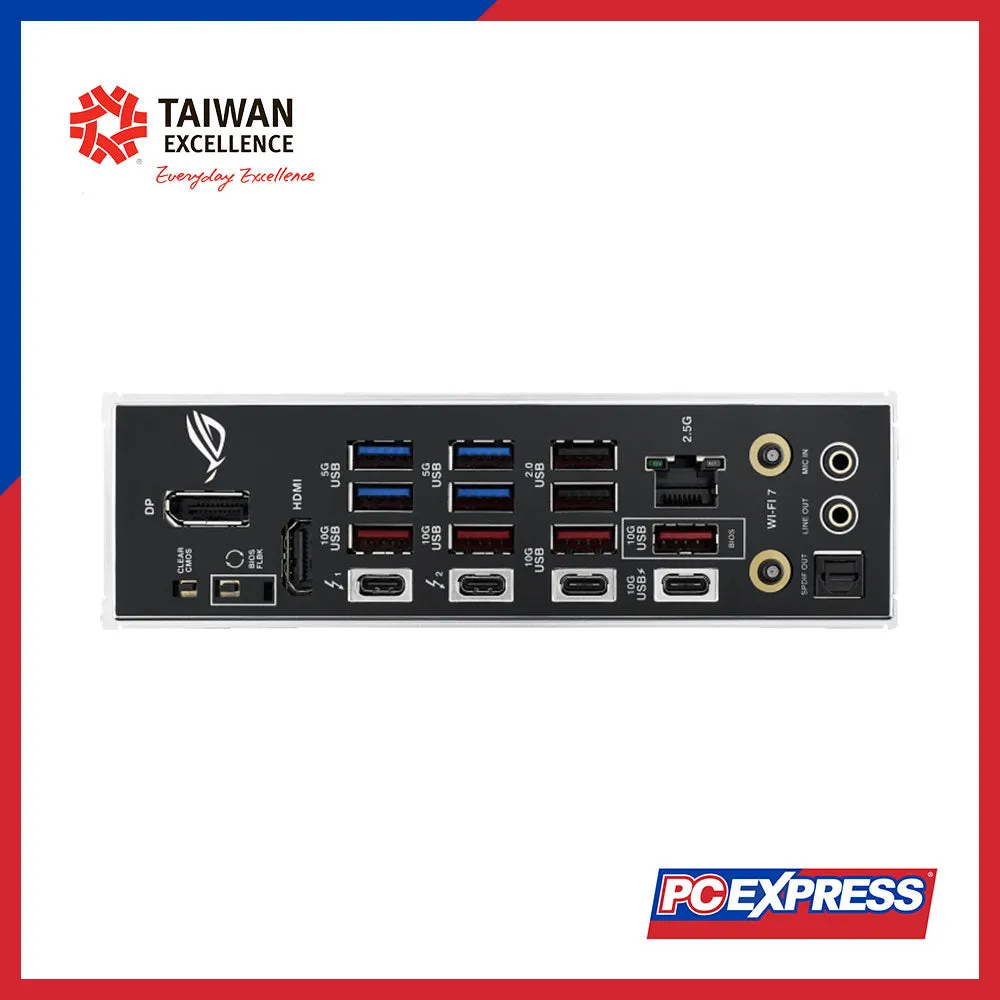

Back Panel I/O Ports

- 2 x Thunderbolt™ 4 (USB-C)
- 6 x USB 10Gbps, 4 x USB 5Gbps, 2 x USB 2.0
- 1 x HDMI, 1 x DisplayPort
- 1 x Intel® 2.5Gb Ethernet
- 1 x Optical S/PDIF out, 2 x Audio Jacks
- 1 x BIOS FlashBack™ button, 1 x Clear CMOS button

Internal I/O Connectors

- 1 x USB 20Gbps (Type-C), 2 x USB 5Gbps headers, 2 x USB 2.0 headers
- 5 x M.2 slots, 4 x SATA 6Gb/s ports
- Multiple fan and cooling headers, Chassis Intrusion, Addressable Gen2 headers

Special Features

Extreme Engine Digi , ASUS Q-Design (e.g., M.2 Q-Latch, Q-LED, Q-Code), ASUS EZ DIY (BIOS FlashBack™, Pre-mounted I/O Shield), Aura Sync, Enhanced VRM Heatsink, SafeSlot

Software Features

ROG Exclusive: CPU-Z, Dolby Atmos
ASUS Exclusive: Armoury Crate, Aura Creator, Fan Xpert 4 (AI Cooling II), GameFirst, Power Saving, Norton 360 (trial)

BIOS

256 Mb Flash ROM, UEFI AMI BIOS; Features AI Overclocking Guide, CrashFree BIOS 3, MyHotkey

Accessories

- 2 x SATA 6Gb/s cables
- ASUS Wi-Fi Q-Antenna
- Thermal pad for M.2 22110
- Cable ties pack, ROG key chain, ROG stickers

Operating System

Windows® 11 (22H2 & later)

Form Factor

ATX (12 x 9.6 inches / 30.5 x 24.4 cm)
