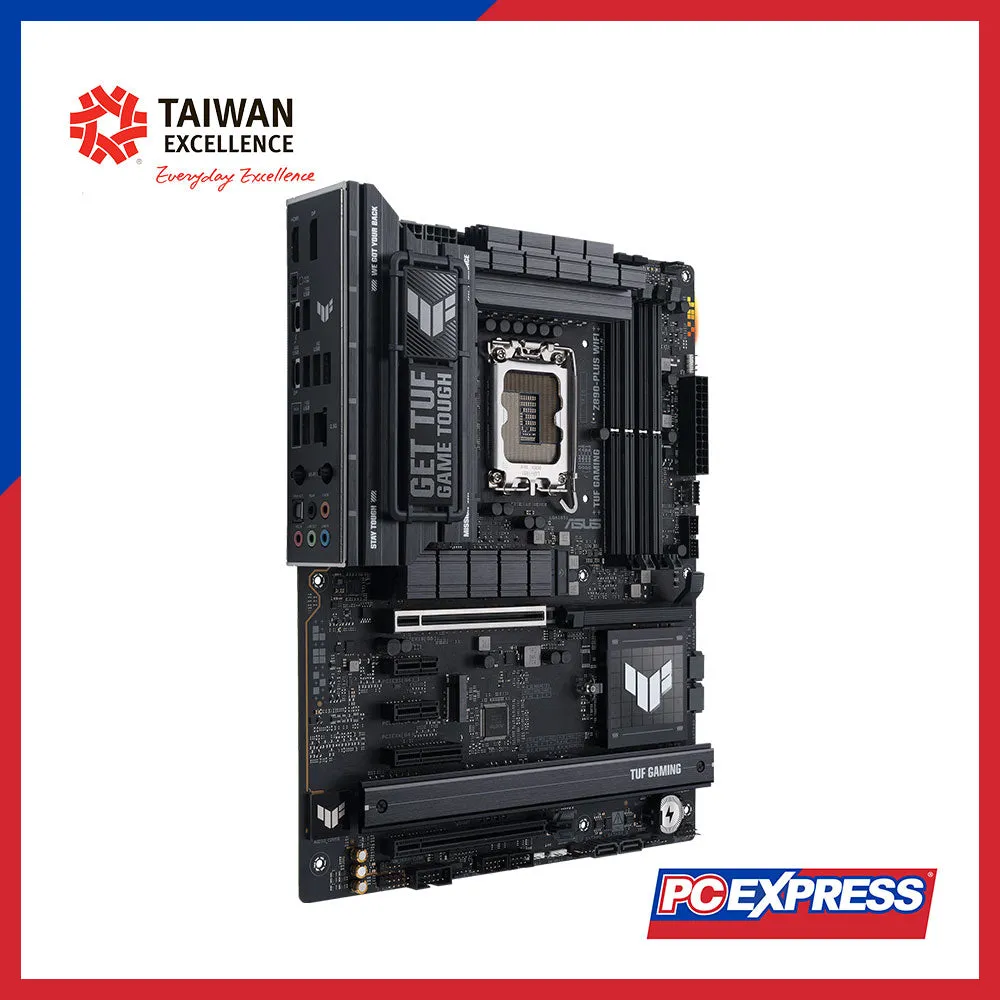

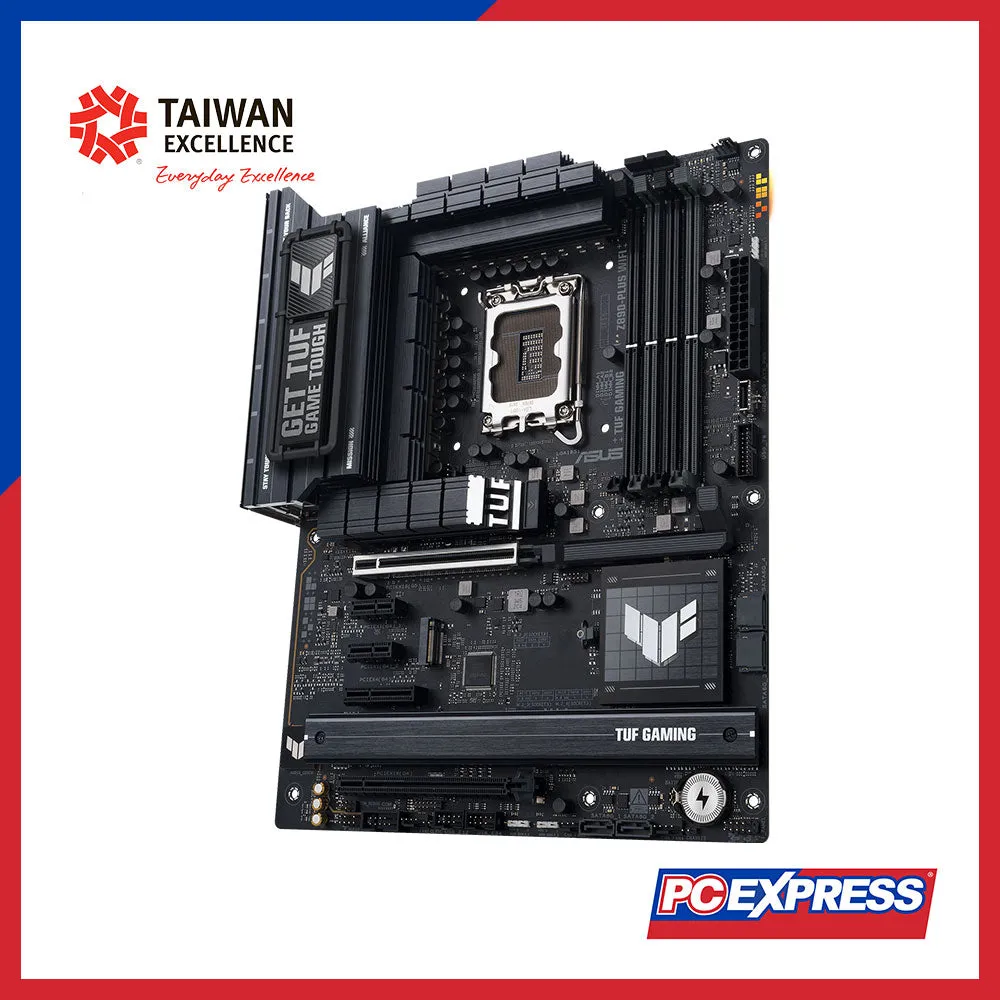

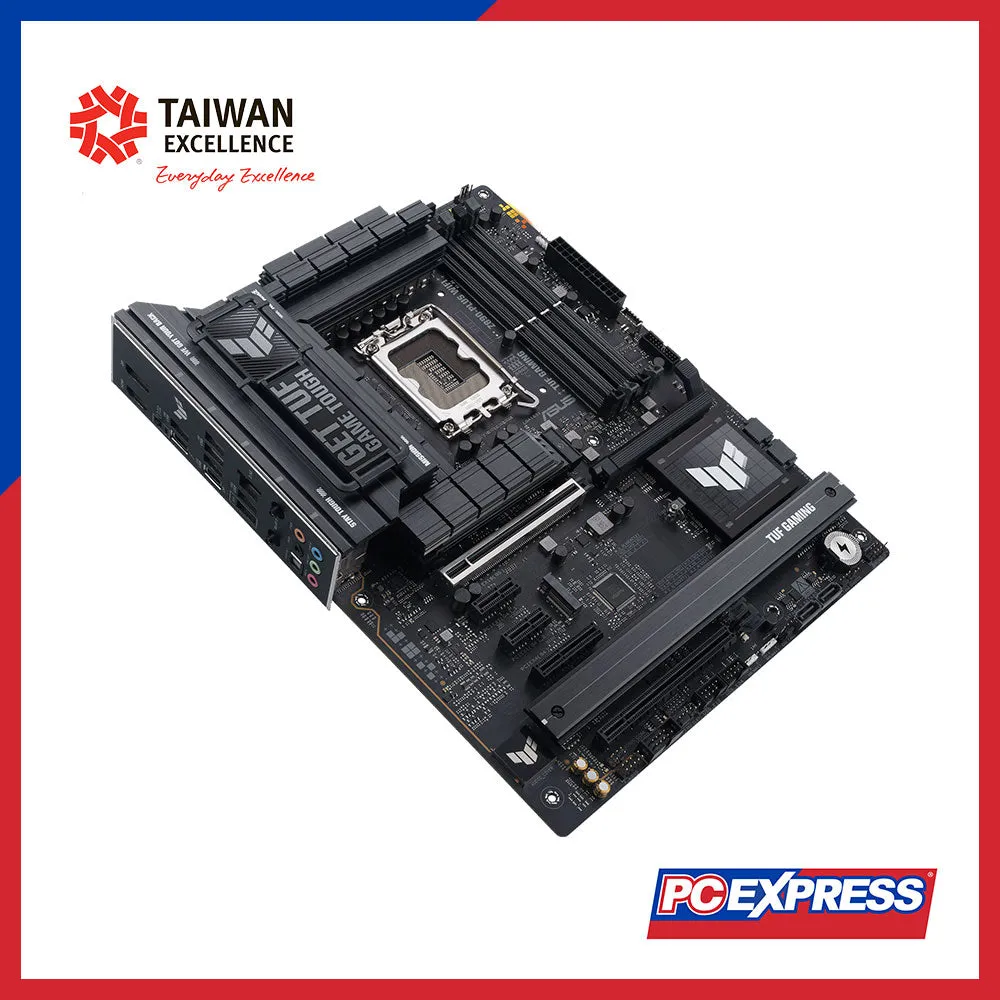

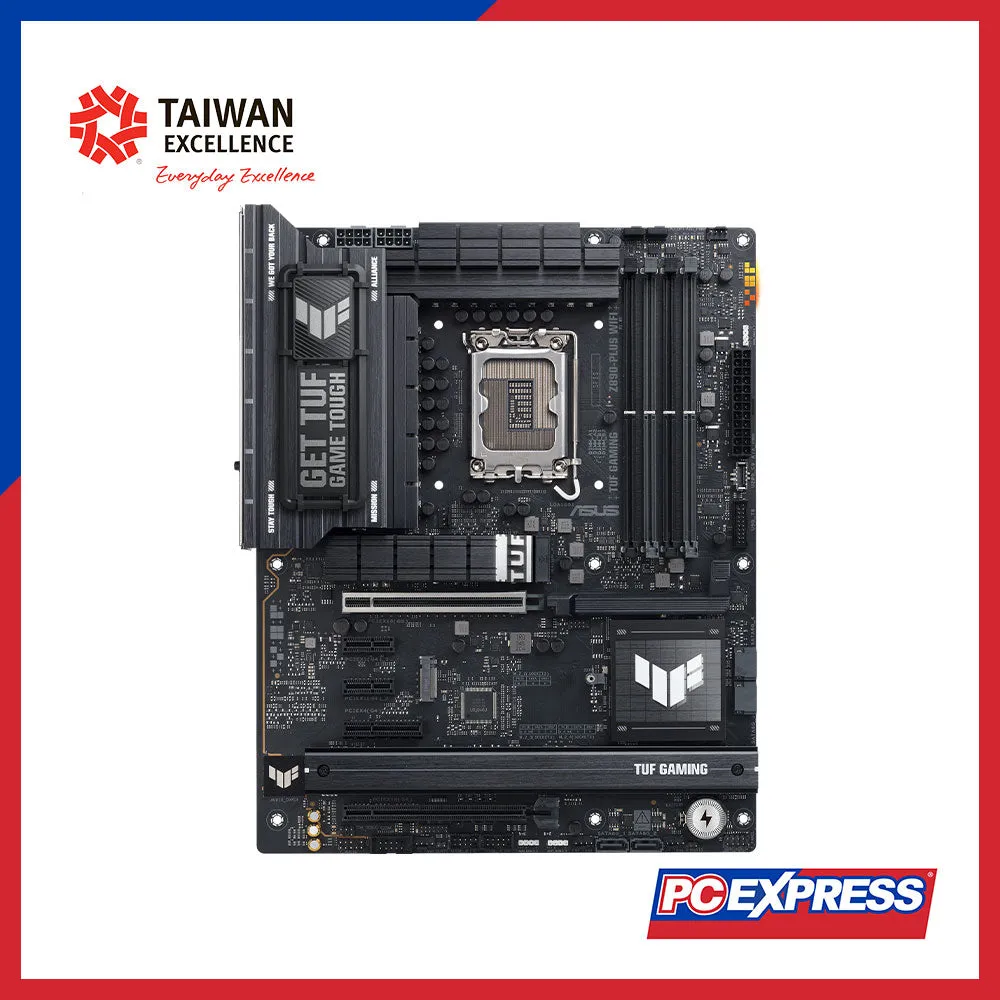

TUF GAMING Z890-PLUS WIFI

News & Updates

New BIOS released (10/24/2024) addressing bugs, including display issues with Windows 11 24H2. EZ Flash tool recommended for update.

CPU

Supports Intel® Core™ Ultra Processors (Series 2), LGA1851; Intel® Turbo Boost Technology 2.0 & 3.0 (dependent on CPU type).

Chipset

Intel® Z890 Chipset

Memory

4 x DIMM slots, max. 192GB DDR5, up to 9066 MT/s (OC), Non-ECC, Un-buffered; Dual channel memory architecture; Intel® XMP support.

Graphics

1 x DisplayPort, 1 x HDMI™ 4K@60Hz, 1 x Thunderbolt™ 4 port (USB Type-C®), 1 x USB 20Gbps port (USB Type-C®), supports various resolutions and video outputs.

Expansion Slots

1 x PCIe 5.0 x16, 1 x PCIe 4.0 x16 (x4 mode), 1 x PCIe 4.0 x4, 2 x PCIe 4.0 x1 slots

Storage

4 x M.2 slots (PCIe 5.0/4.0/ SATA), 4 x SATA 6Gb/s ports; Intel® Rapid Storage Technology (RAID support for PCIe/SATA).

Ethernet

1 x Intel® 2.5Gb Ethernet, TUF LANGuard

Wireless & Bluetooth

Wi-Fi 7 (802.11be), 2x2, up to 2.9Gbps transfer, Bluetooth® v5.4; Wi-Fi 7 requires Windows 11 24H2 or later for full functionality.

USB Ports (Rear)

1 x Thunderbolt™ 4 USB Type-C®, 1 x USB 20Gbps Type-C®, 3 x USB 10Gbps Type-A, 3 x USB 5Gbps Type-A

USB Ports (Front)

1 x USB 20Gbps Type-C®, 1 x USB 5Gbps header, 2 x USB 2.0 headers

Audio

Realtek ALC1220P 7.1 Surround Sound CODEC, 120dB SNR stereo playback, 113dB SNR recording, optical S/PDIF out, audio shielding, capacitors, dedicated PCB layers.

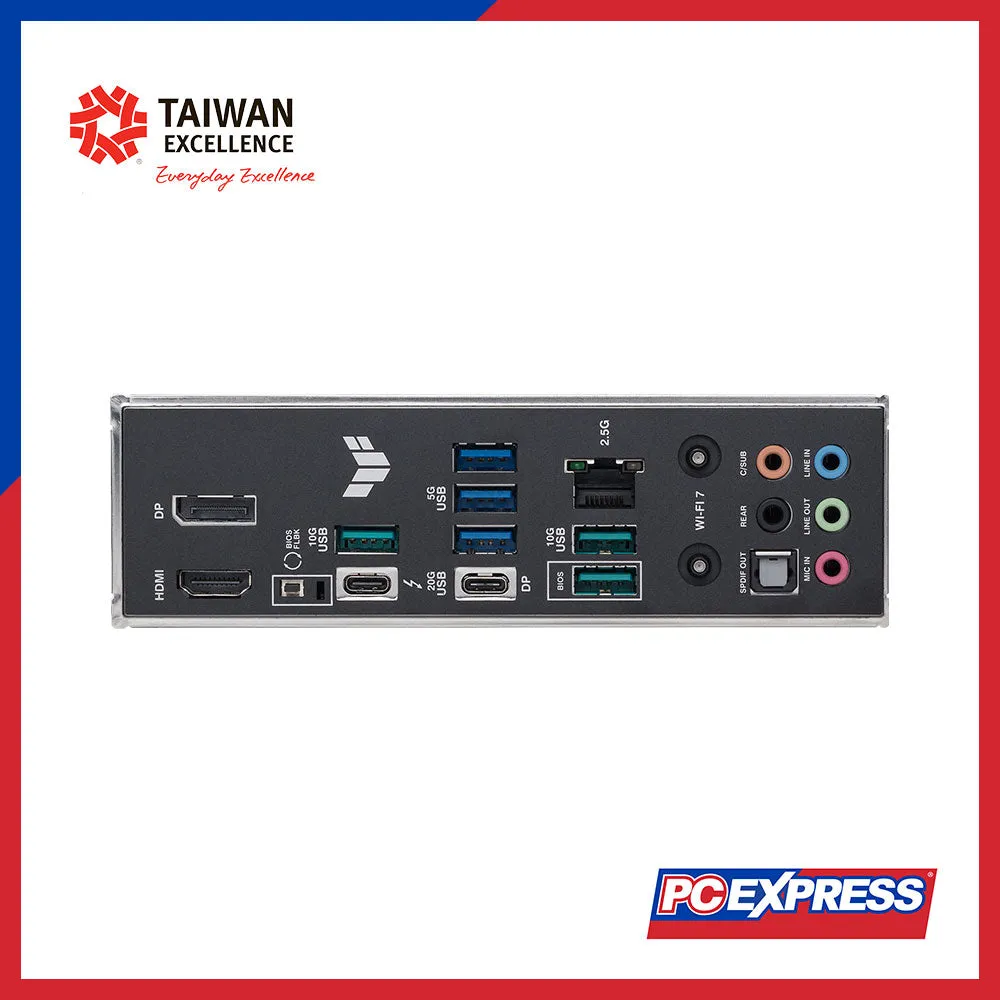

Back Panel I/O Ports

1 x Thunderbolt™ 4 USB Type-C®, 1 x USB 20Gbps Type-C®, 3 x USB 10Gbps Type-A, 1 x DisplayPort, 1 x HDMI™, 1 x Intel® 2.5Gb Ethernet, 5 x Audio jacks, Optical S/PDIF

Internal I/O Connectors

1 x 4-pin CPU fan header, 2 x 8-pin CPU power, 4 x M.2 slots, 4 x SATA 6Gb/s, 1 x USB 20Gbps, 2 x USB 2.0 headers, 3 x Gen 2 addressable headers, 1 x Clear CMOS header

Special Features

ASUS TUF Protection (ESD Guards, TUF LANGuard, Overvoltage protection), Aura Sync, ASUS Q-Design (M.2 Q-Latch, Q-Release), M.2 heatsinks, SafeDIMM, Pre-mounted I/O shield

Software Features

Armoury Crate, Aura Sync, Fan Xpert 4, TurboV Core, DTS Audio, ASUS DriverHub, WinRAR, Norton 360 for Gamers (60 days trial), BIOS EZ DIY, ASUS CrashFree BIOS 3

BIOS

256 Mb Flash ROM, UEFI AMI BIOS

Operating System

Windows 11 (22H2 & later)

Form Factor

ATX, 12 inch x 9.6 inch (30.5 cm x 24.4 cm)

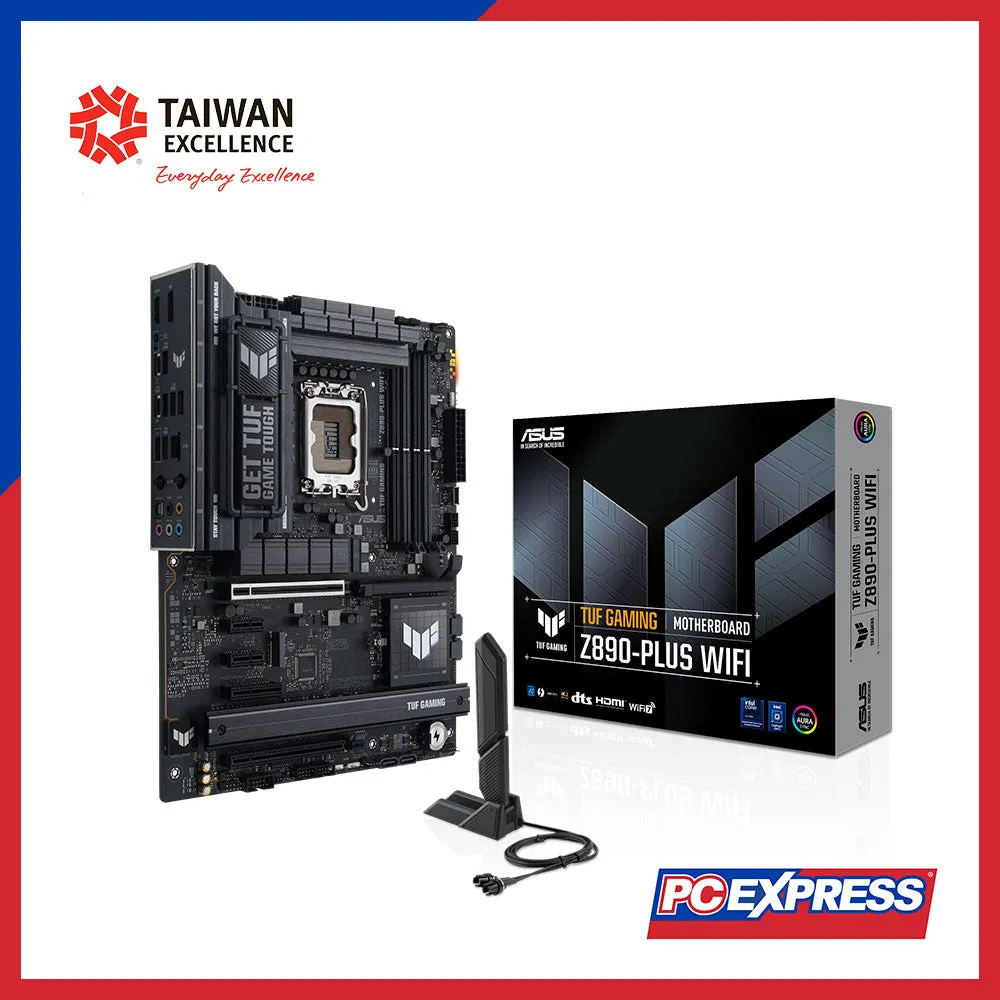

Accessories

2 x SATA cables, ASUS WiFi Q-Antenna, M.2 Q-Slide package, 1 x Screw package, TUF GAMING sticker, Quick start guide.
