| Product Attribute | Attribute Value |
|---|---|
| Communication Port Type | USB ; Ethernet ; Modbus |
| Controller Type | Logic |
| Current, Supply | 0 to 20 mA |
| Depth | 0.079" (2mm) |
| Dimensions | 107.6 x 124.6 x 68 mm |
| Family Name | Millenium 3 Smart Expandable Family |
| For Use With | Millenium 3 Custom Controllers ; Millenium 3 Standard Controllers |
| Input Type | Analog ; Digital |
| IP Rating | IP40 |
| Length | 4.236" (107.6mm) |
| Maximum Operating Temperature | 70 C |
| Memory | EEPROM |
| Minimum Operating Temperature | -20 C |

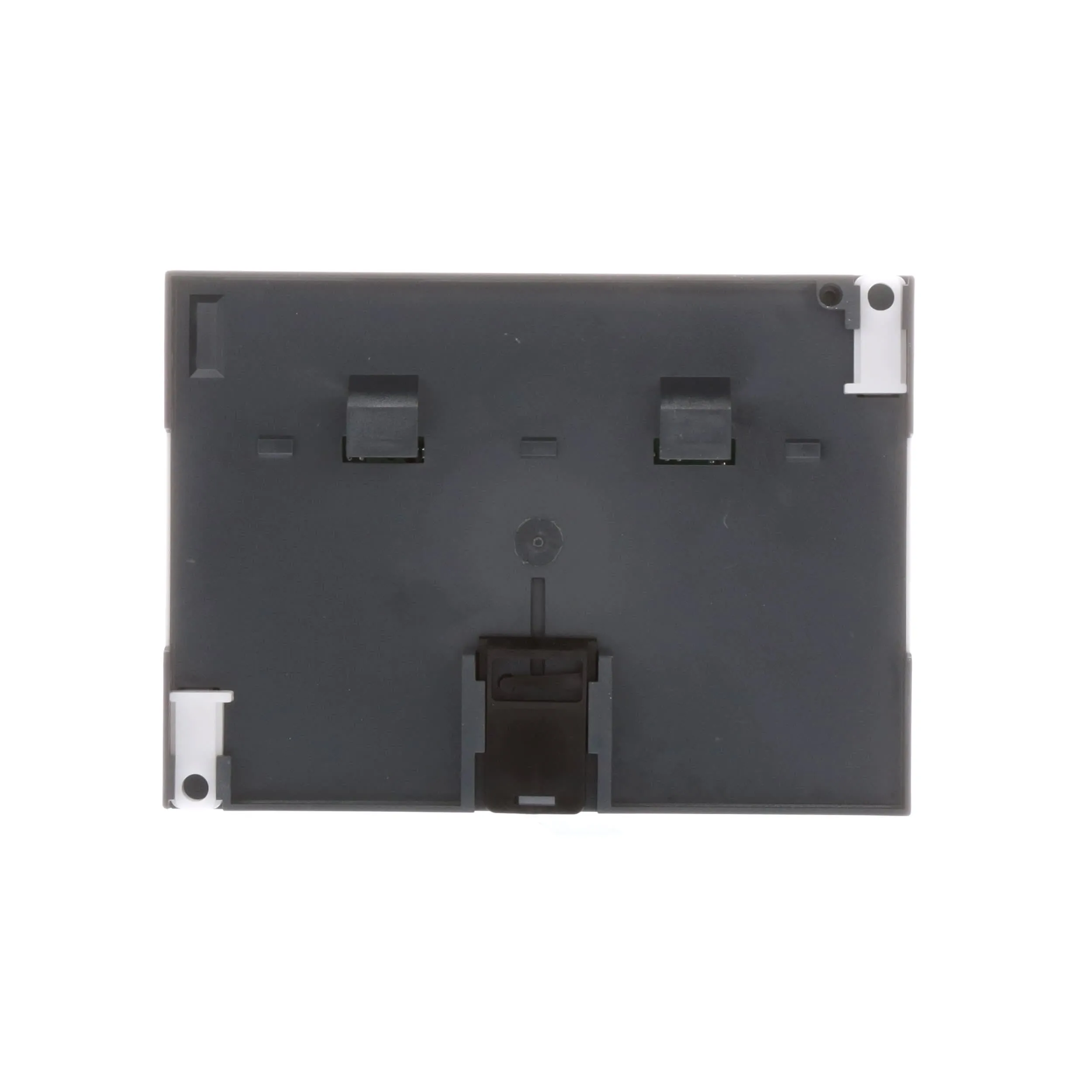

| Mounting Type | DIN Rail ; Panel |
| Number of I/O Ports | 26 |
| Number of Inputs | 16 |
| Number of Outputs | 10 |
| Output Current | 5 A (2 Output), 8 A (8 Output) |
| Output Type | Relay |
| Primary Type | Controller |

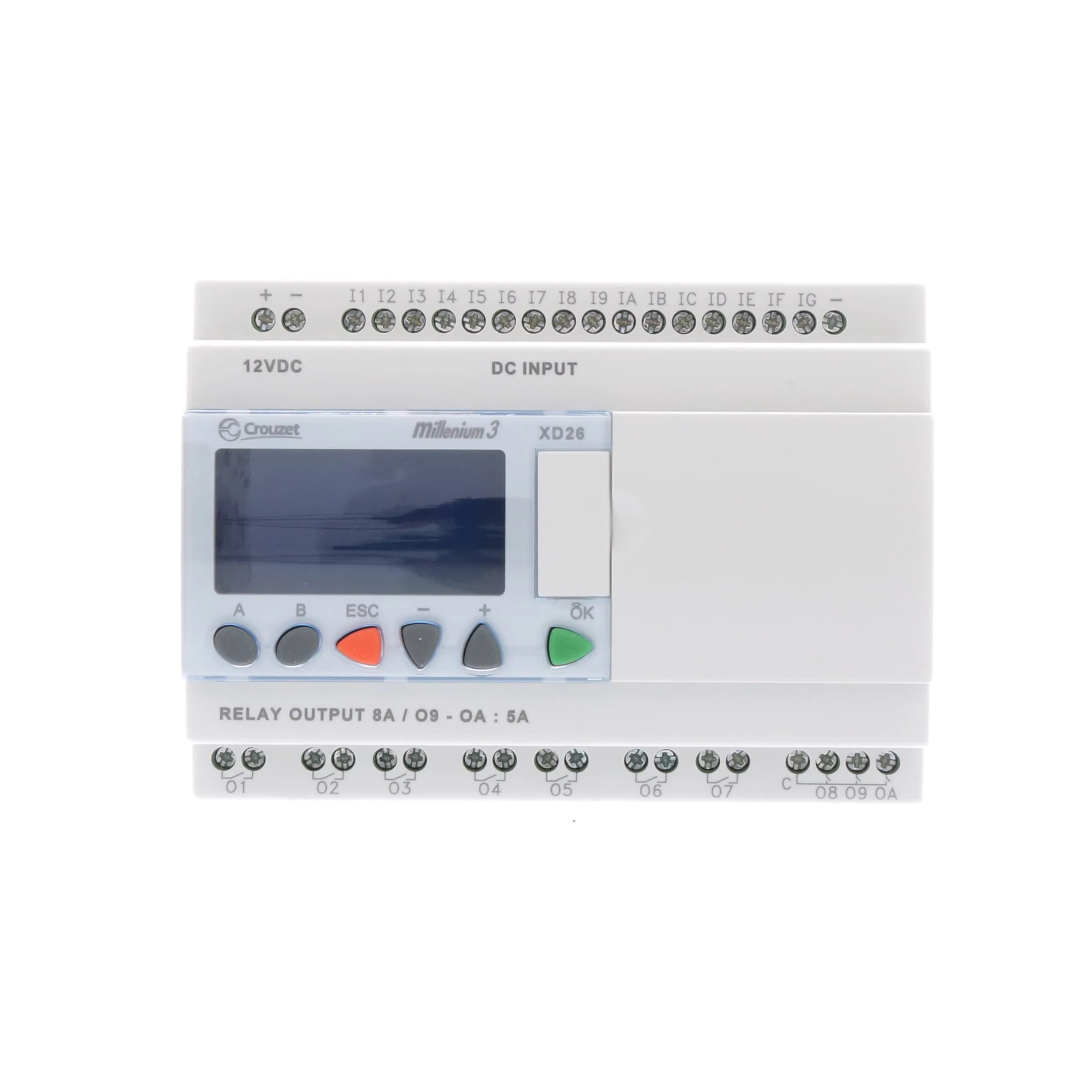

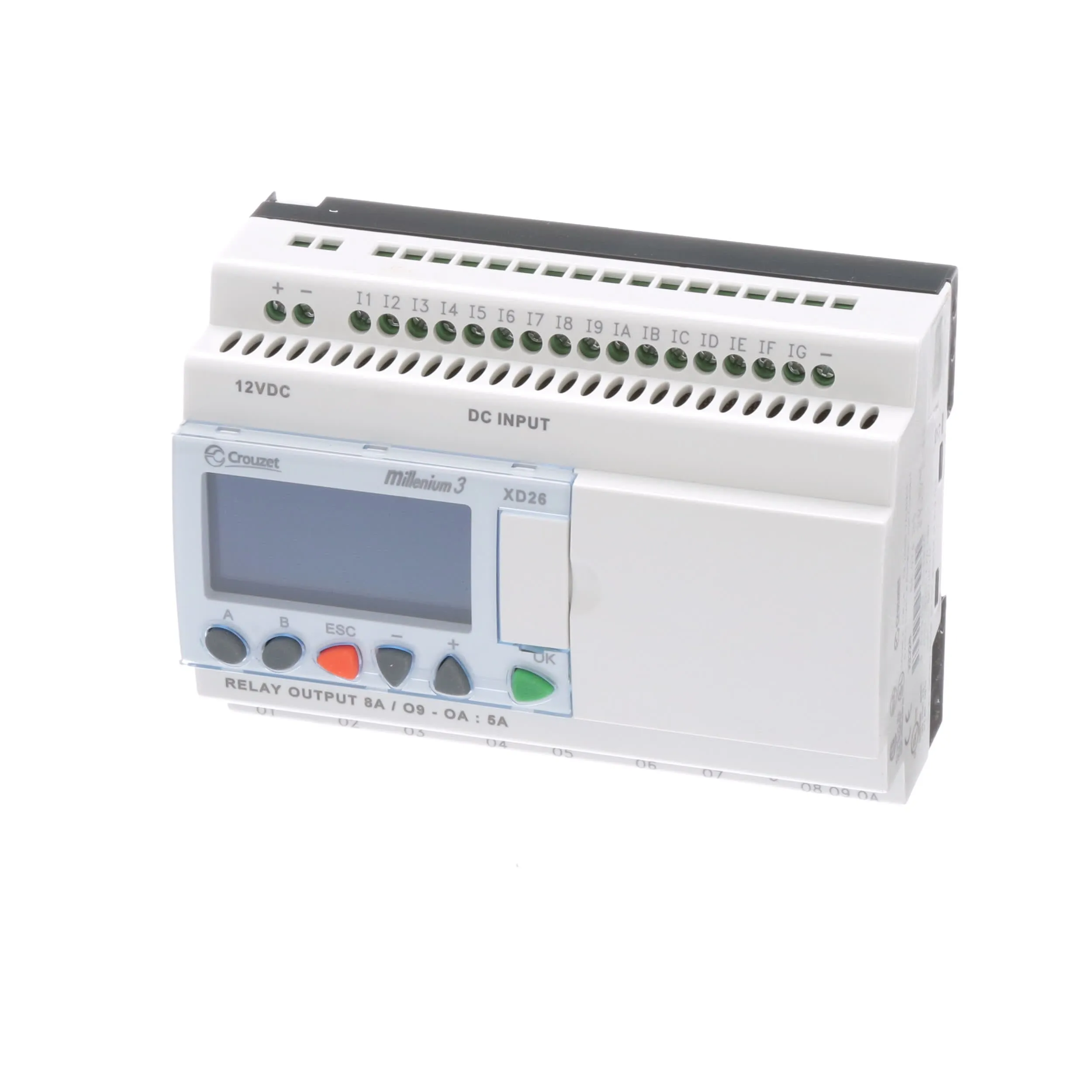

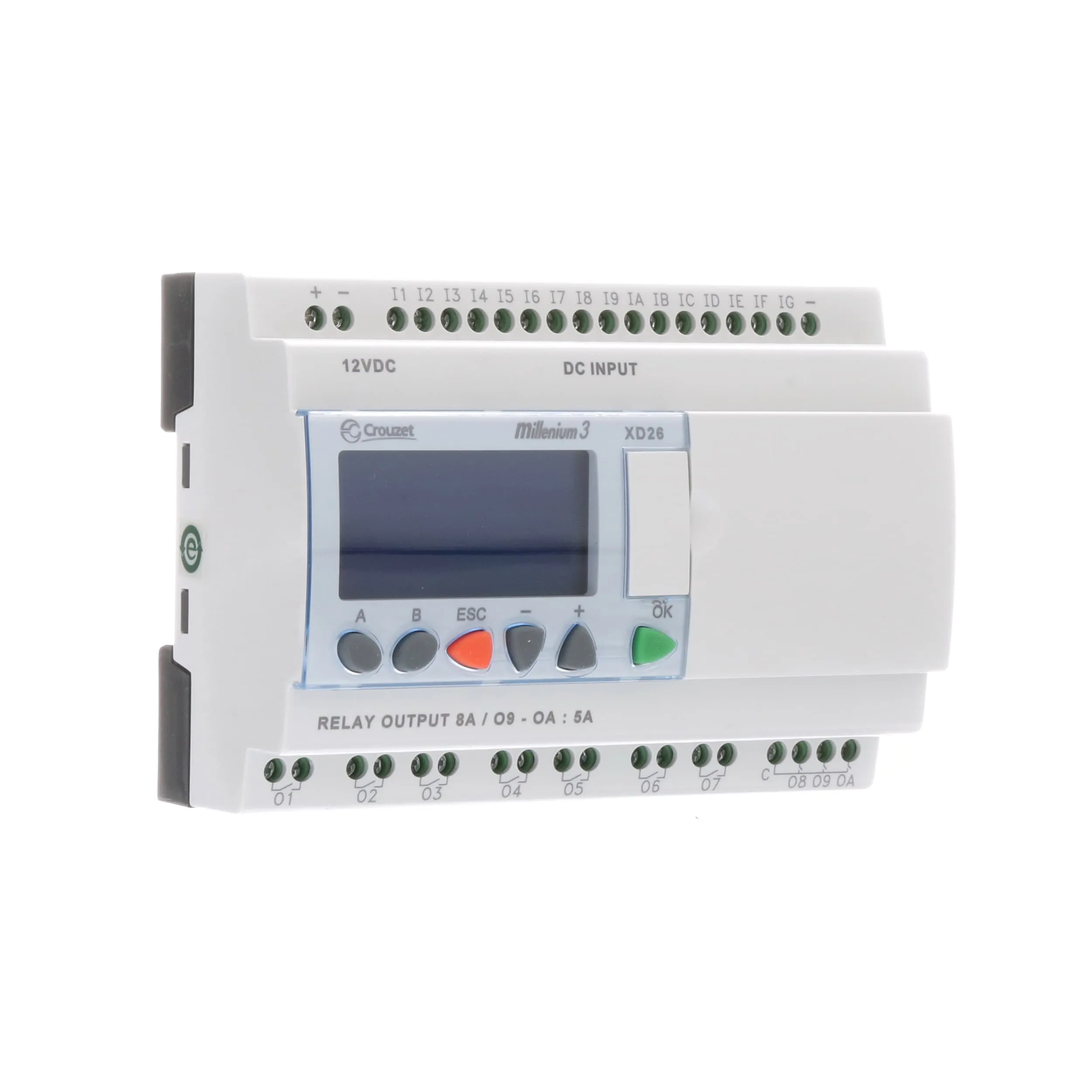

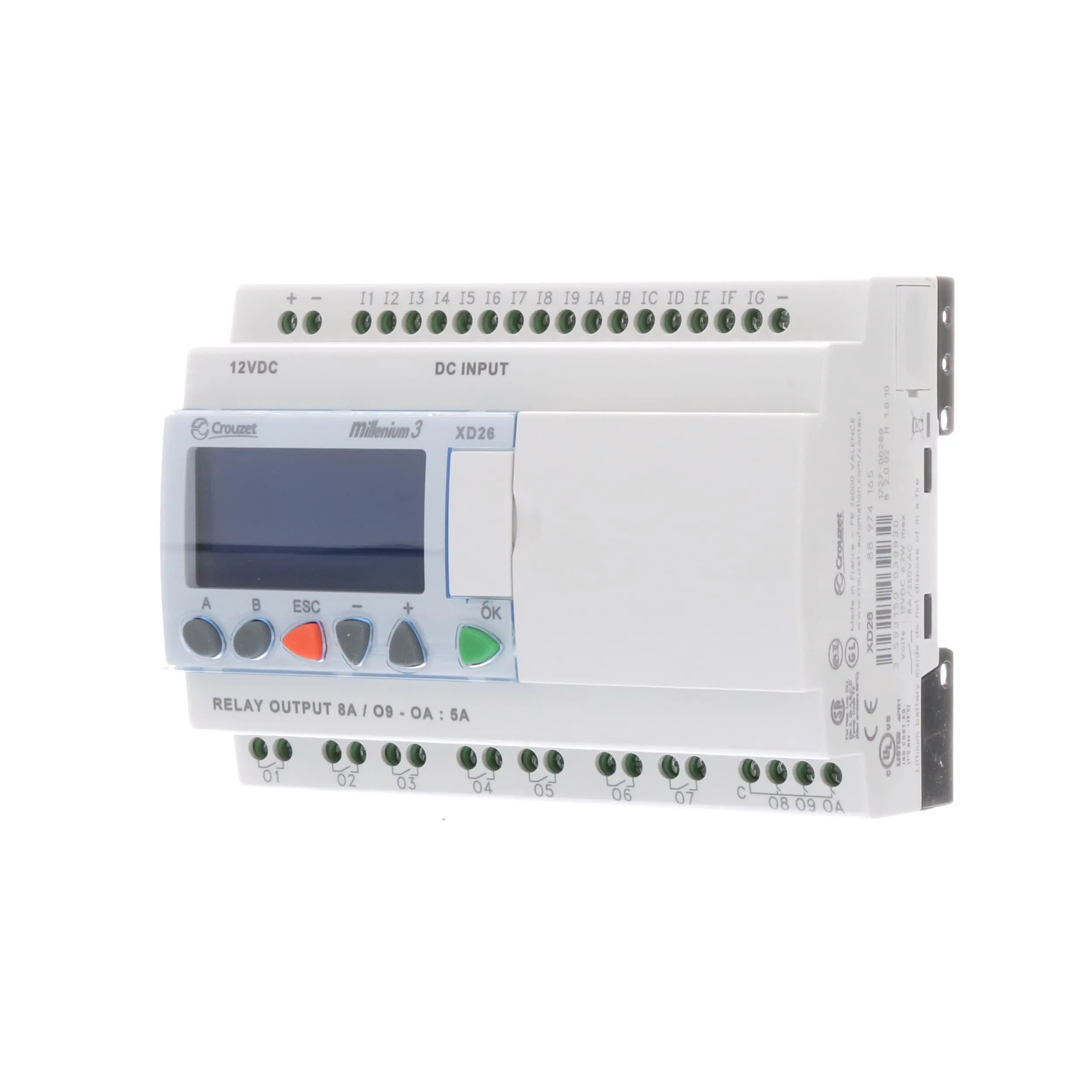

| Product Header | XD26 Millenium 3 Expandable Range Logic Controller |
| Scan Rate | 10 (Make) Off-Cycle Response, 5 (Release) Off-Cycle Response ms |
| Series | |
| Special Features | 70degC Operating Temperature, Backlit Blue LCD Display, Expandable Version, Modbus Communication 2 x 8 Words with Read/Write Access, Network Creation Option Communication between 7 Millennium 3 Unit |
| Standards | CE ; CSA ; GL ; UL |
| Supply Voltage | 12 VDC |
| Temperature Operating Range | -20 to 70 C |
| Termination | Screw |
| Type | PLC |
| Voltage Rating | 12 VDC |
| Width | 4.906" (124.6mm) |
Overview
Crouzet Millenium 3 Smart Expandable Family | XD10 / XD26 Series — With em4 Remote The first All-in-One Solution to Bring Your Application into the Internet of Things:
The Millenium 3 Smart logic controller is the easiest programmable module to use on the market. Easy to program thanks to M3 Soft, it enables the control and monitoring of machines and automation installations with up to 50 I/Os. Easy to program and to implement, it enables the control and monitoring of machines and automation installations with up to 50 I/O. It is positioned right at the heart of the Automation range. Millenium 3 offers both standard and customized product solutions for a range of applications, including automatic barriers, automatic doors, turnstiles, sectional doors and disabled access ramps.
The Millenium 3 logic controller and the em4 NanoPLC are the easiest to use programmable modules for various applications. With simple and intuitive software, controlling and monitoring of machines and automation installations is incredibly simple.
Smart Expandable Range with Display Features:
