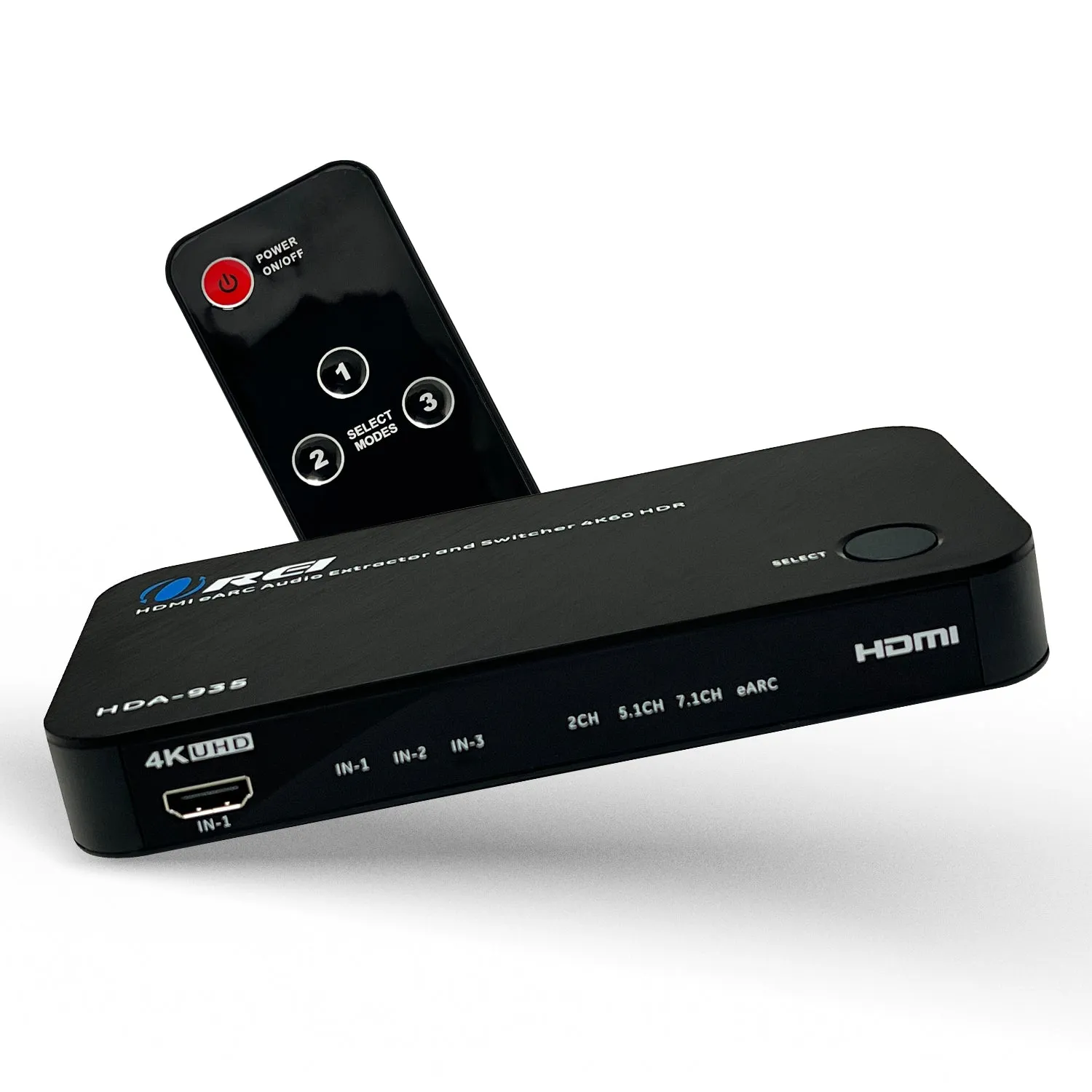

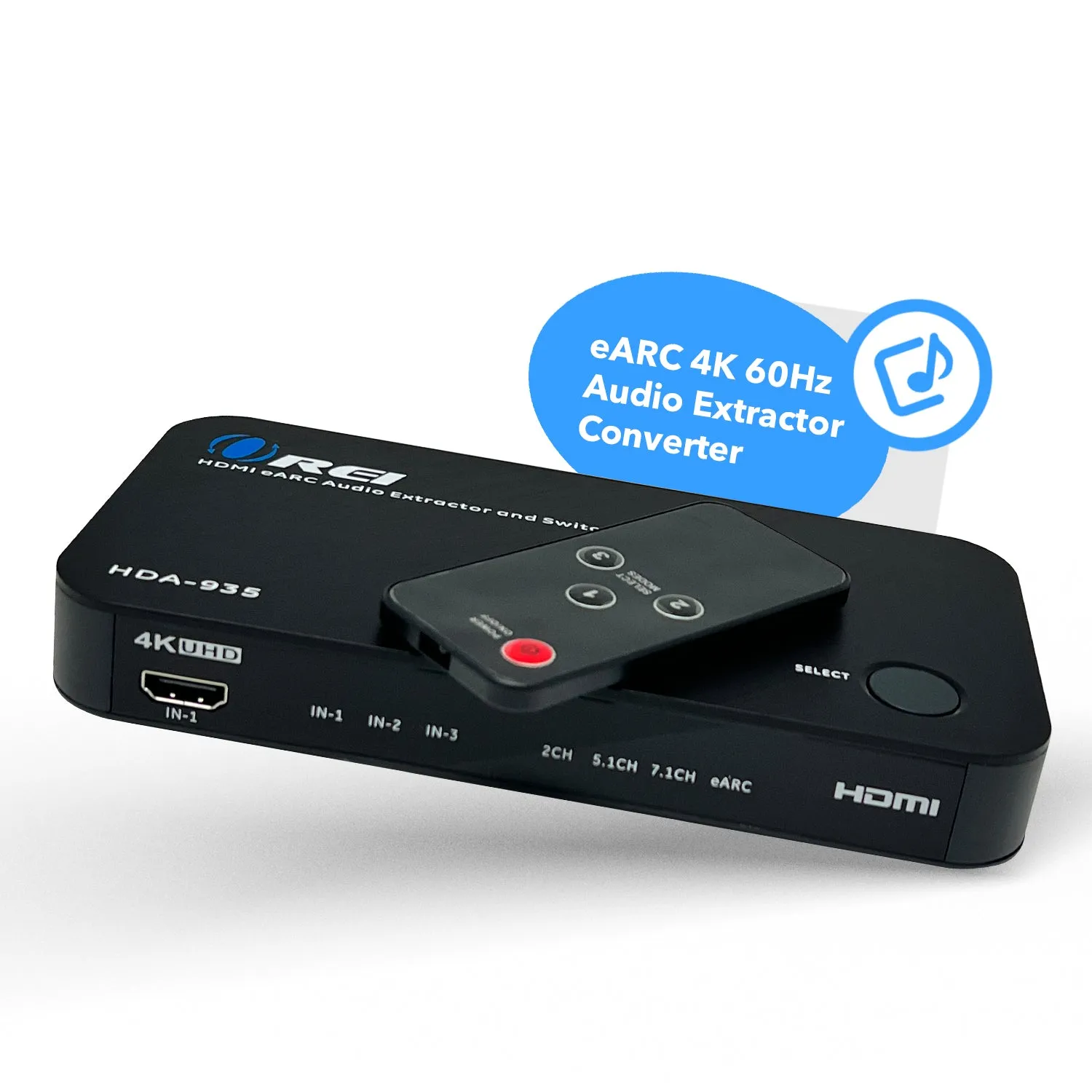

OREI HDA-935: Dual HDMI eARC HDMI Audio Extractor
- Supports Video and audio separation
- Auto eARC Detection when using the TV's app or external devices
- Supports dual HDMI audio interface (HDMI eARC and HDMI Audio)
- Supports 4K@60 & HDR
- Compatible with Dolby Atmos (via HDMI)
- Supports Pixel clock rate up to 600 MHz
- Supports S/PDIF, Stereo 3.5mm audio output
- Supports DTS HD, Dolby TrueHD (via HDMI)
- Supports HDMI 2.0 / 2.1(eARC)
- HDCP 2.3 compliant

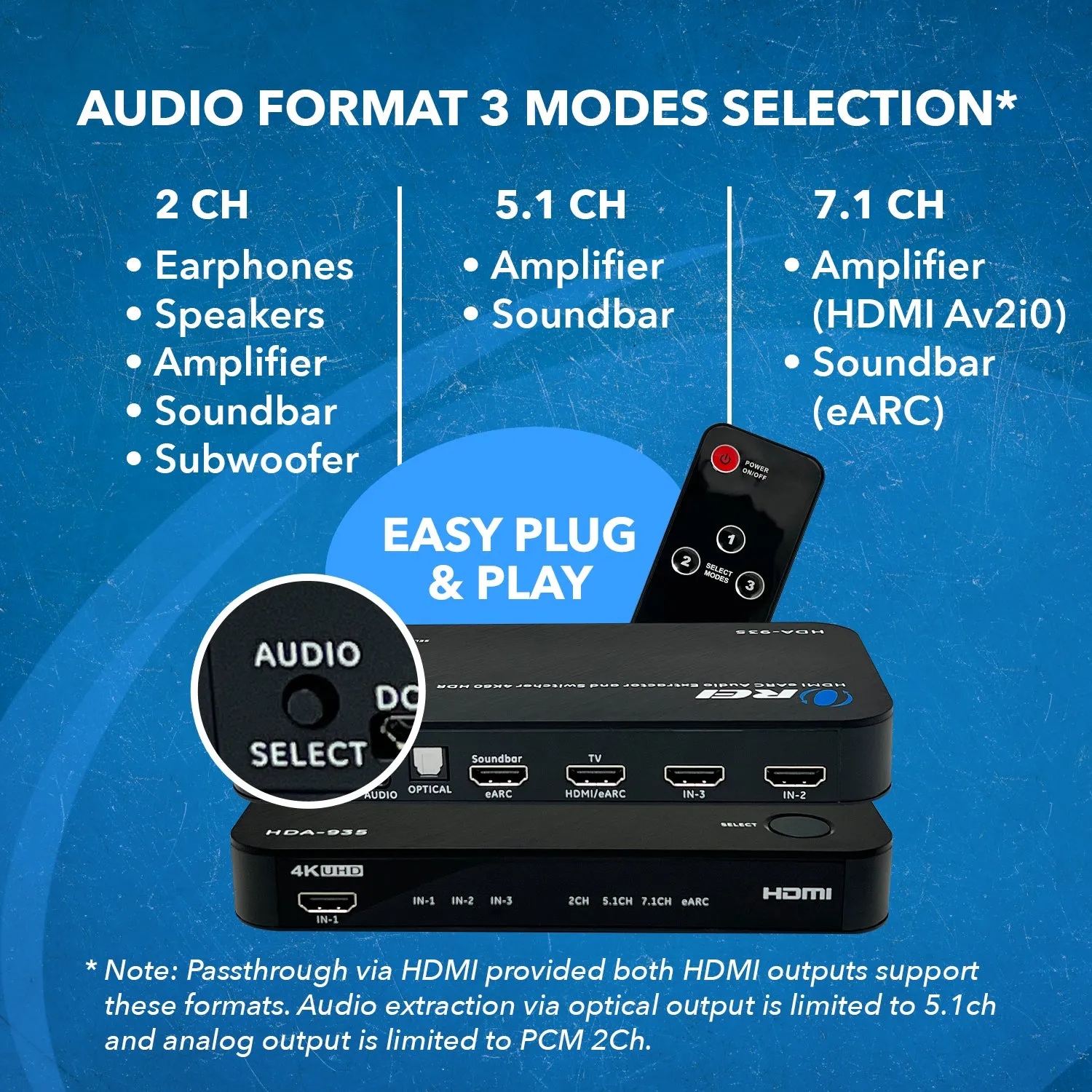

- Three modes selection for audio format setting (2Ch/ 5.1Ch/ 7.1Ch)
- Support CEC (Use the TV RC to adjust the Soundbar sound and CEC connecting the device to power ON/OFF)

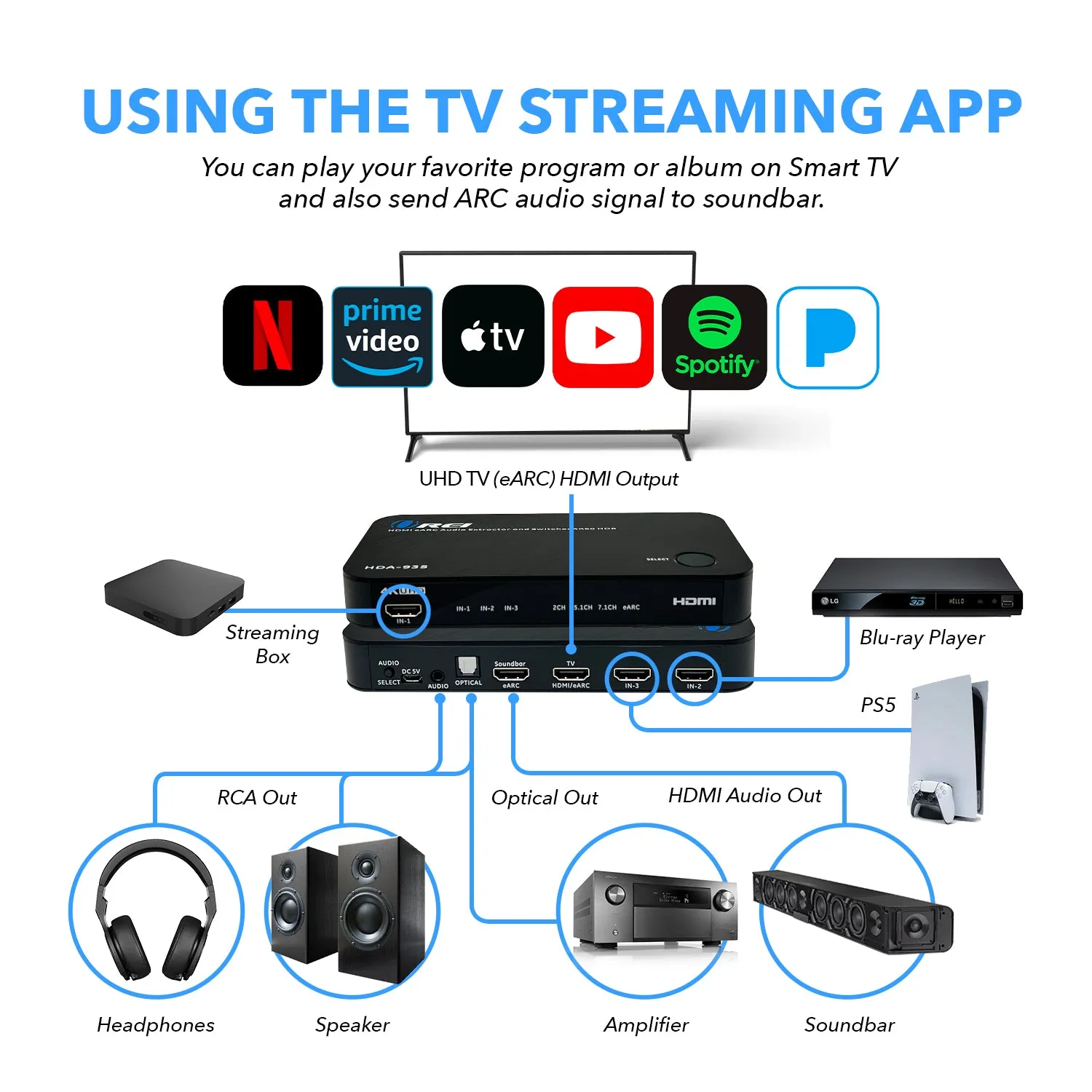

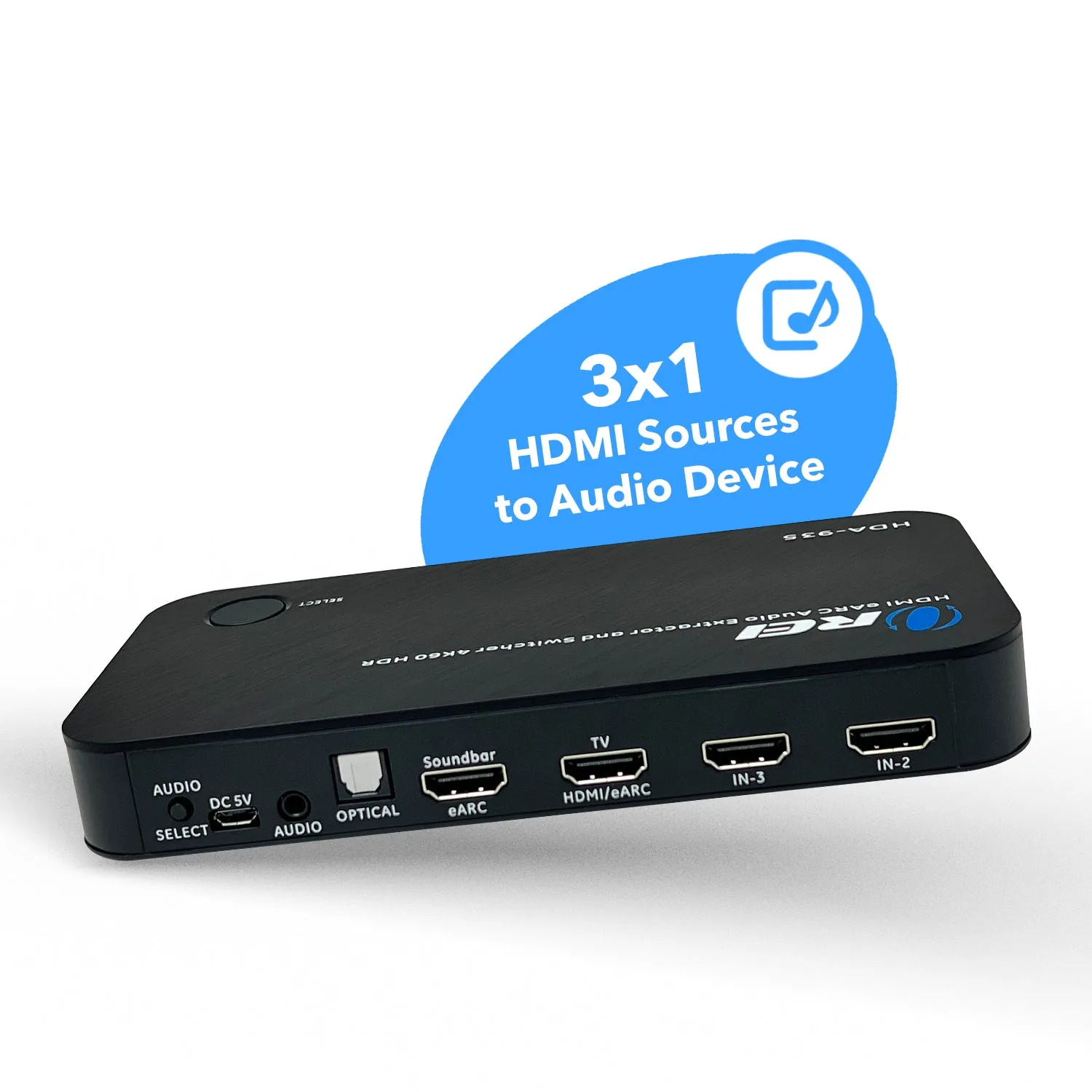

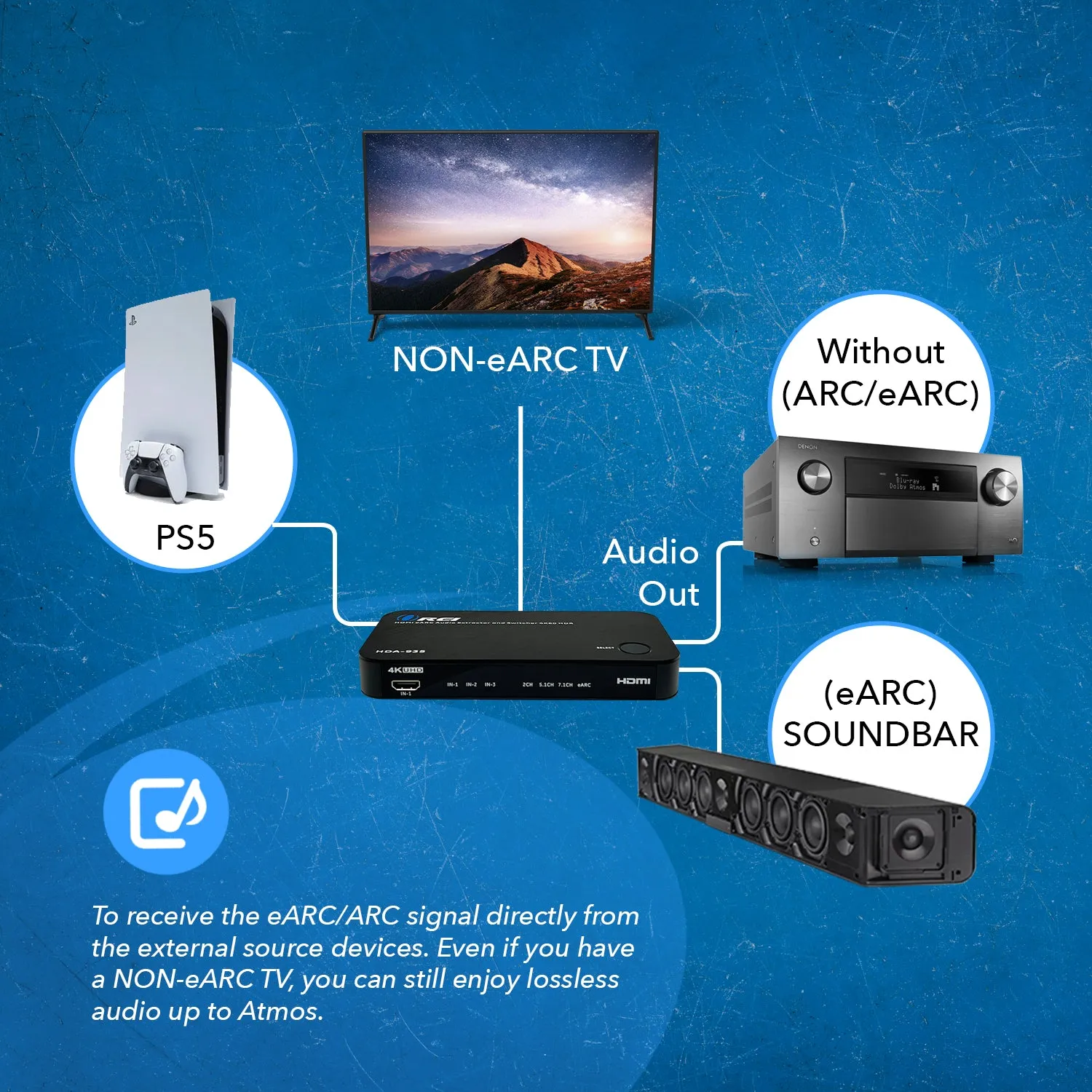

This audio extractor has two HDMI outputs, one for TV 4K@60Hz/HDR video and audio signals, one for eARC Soundbar. It also has S/PDIF(Optical) and analog 3.5mm stereo interface outputs.

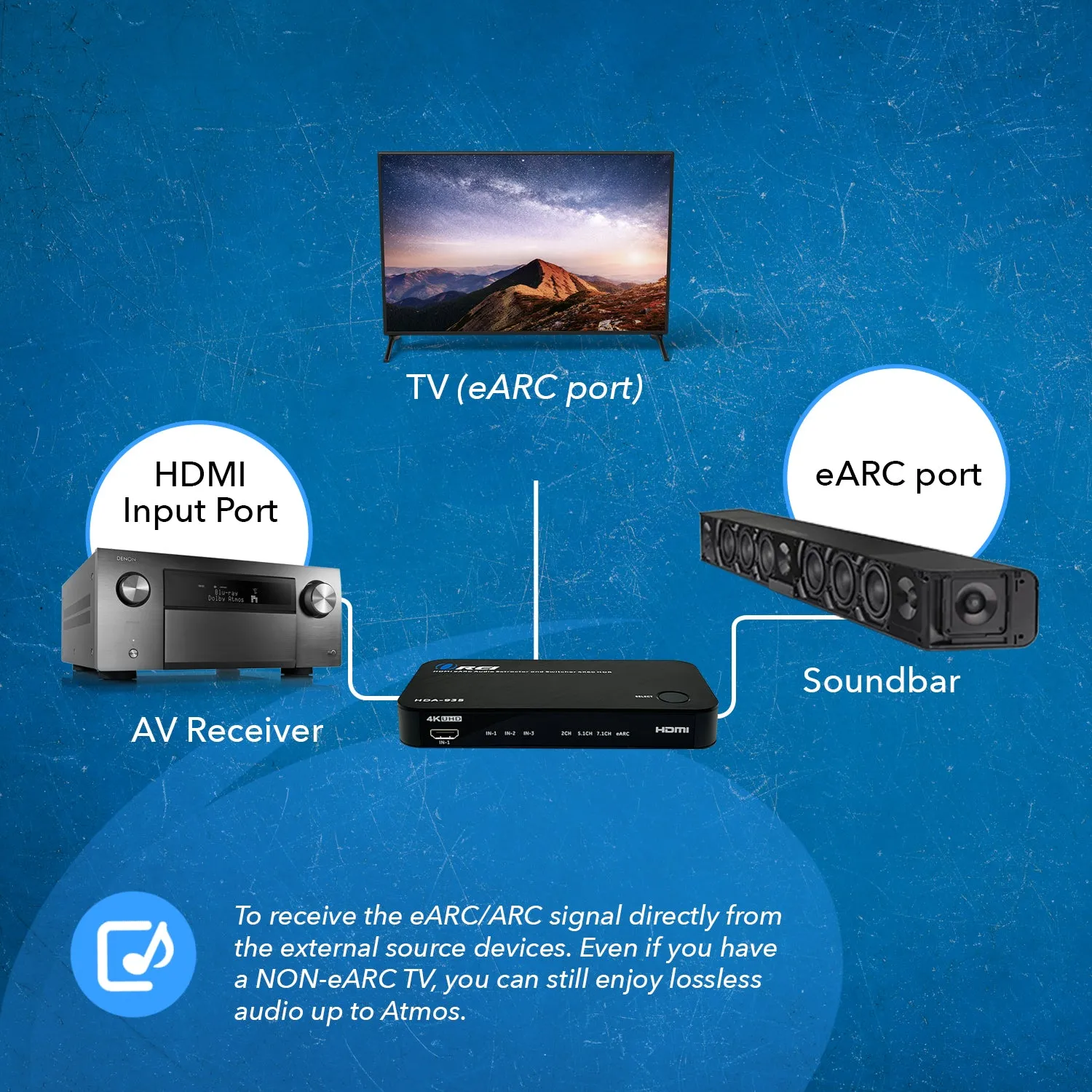

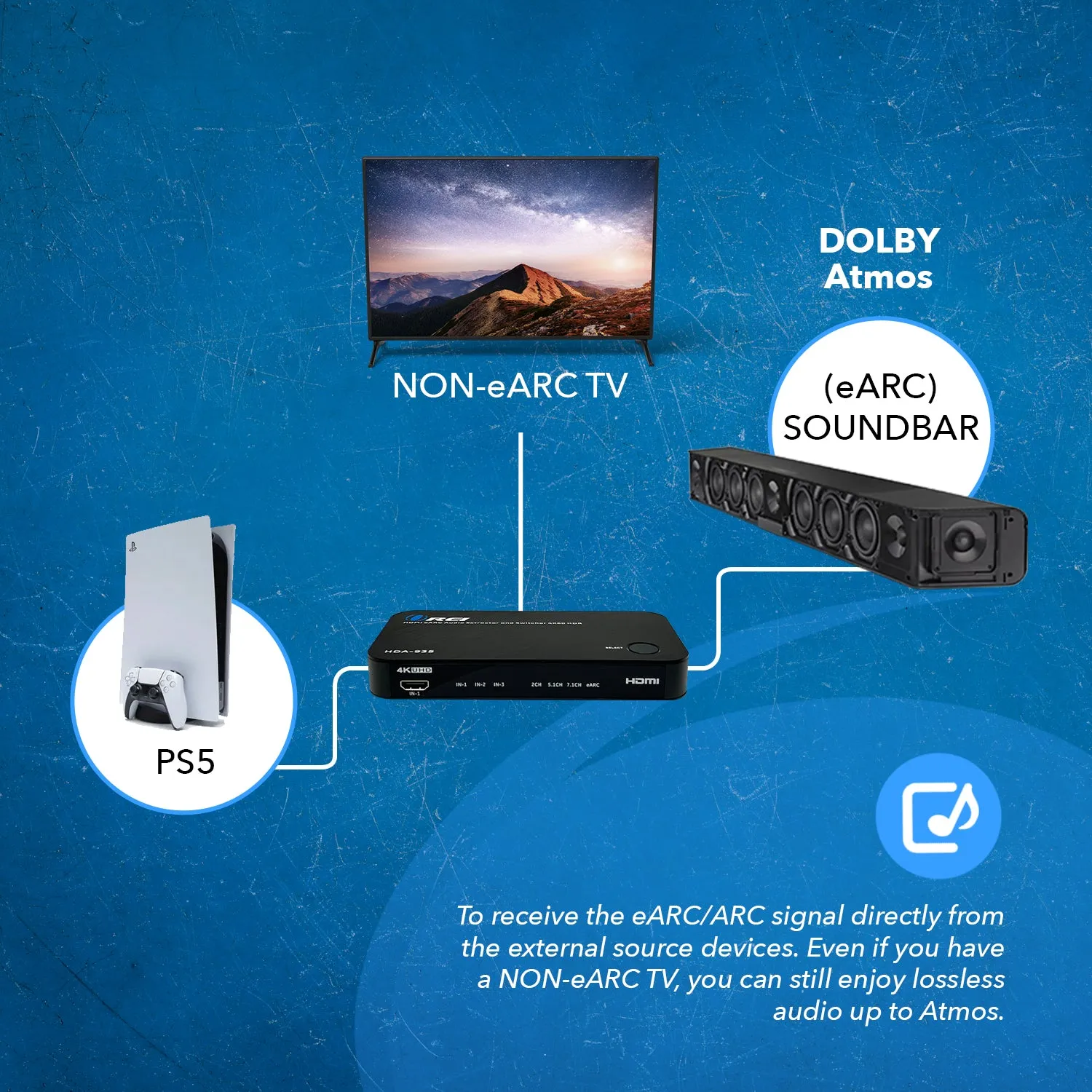

The TV signal can be transmitted back to Soundbar via eARC (enhanced Audio Return Channel) to play high-quality surround sound. Even Non-eARC TV can enjoy the high-quality of eARC audio return for lossless audio up to Atmos.
Build-in eARC automatically detect the source of the signal (TV or external signal).[shortdes]
- 2 HDMI Outputs (1 for Video, 1 for soundbar (having eARC/ARC port)
- Supports S/PDIF, Stereo 3.5mm audio output
- Supports CEC function between HDMI Ports
AUDIO AND VIDEO
| INPUT PORTS: | 3x HDMI Type A [19-pin female] | |||
| OUTPUT PORTS: | 2x HDMI Type A [19-pin female] | |||
| 1x S/PDIF (Optical) | ||||
| 1x 3.5mm audio jack |
COMPLIANCES
| HDMI Compliance | HDMI 2.1 |
| HDCP Compliance | HDCP 2.3 |
VIDEO OUTPUT
| Video Bandwidth: | 18 Gbps |
| Video Resolutions: | Up to 4k@60Hz |
| Color Space: |
RGB YUV 4:4:4 YUV 4:2:2 YUV 4:2:0 |
| Color Depth: | 12 bit |
CEC & EARC SUPPORT
| CEC: | Use the TV RC to adjust the Soundbar sound and CEC connecting device to power ON/OFF |
| eARC/ARC: | Yes |
SWITCHES
| EDID: | Build-in eARC automatically detects the source of the signal (TV or external signal), no need to switch on or off |
| Audio Select: | Select the audio formats from 2Ch, 5.1Ch, 7.1Ch |
AUDIO OUTPUT
| HDMI Audio Formats: | PCM 2.0, LPCM 5.1 / 7.1, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Atmos, DTS 5.1, DTS ES 6.1, DTS HRA, DTS HD Master, DTS:X |
DIMENSIONS & WEIGHT
| Height: | 26.3mm |
| Width: | 175mm |
| Depth: | 86.6mm |
| Weight: | 158g |
PROTECTION
| Operation Temperature: | 0°C to 40°C (32°F to 104°F) |
| Storage temperature: | -20°C to 60°C (-4°F to 140°F) |
| Relative Humidity: | 10~90 % RH |
| ESD Protection: | Contact discharge 4KV Air discharge 8KV |
POWER
| Power Consumption (Max): | 5W(max) | ||||
| Power Supply | 5V/1A |
PHYSICAL PROPERTIES
| Color: | Black |
| Housing: | MABS ABS |
PACKAGE CONTENTS
| 1x HDMI Audio Extractor |
| 1x DC 5V/1A power adaptor |
| 1x 3.5mm to RL cable |
| 1x User Manual |
WARRANTY
| 1-Year Manufacturer's Warranty |
[tab1]
FAQs
Yes, either HDMI input port or HDMI ARC port is required to extract the sound with this product.
No, this product doesn't support the feature of downscaling or upscaling the audio signals. Whatever the audio signals that you're inputting, you will get that audio signal as an output.
