Name: Emotiva XPA-5 Gen3 5 Channel Audiophile 300W Power Amplifier
SKU: 244995

Product Details ＋

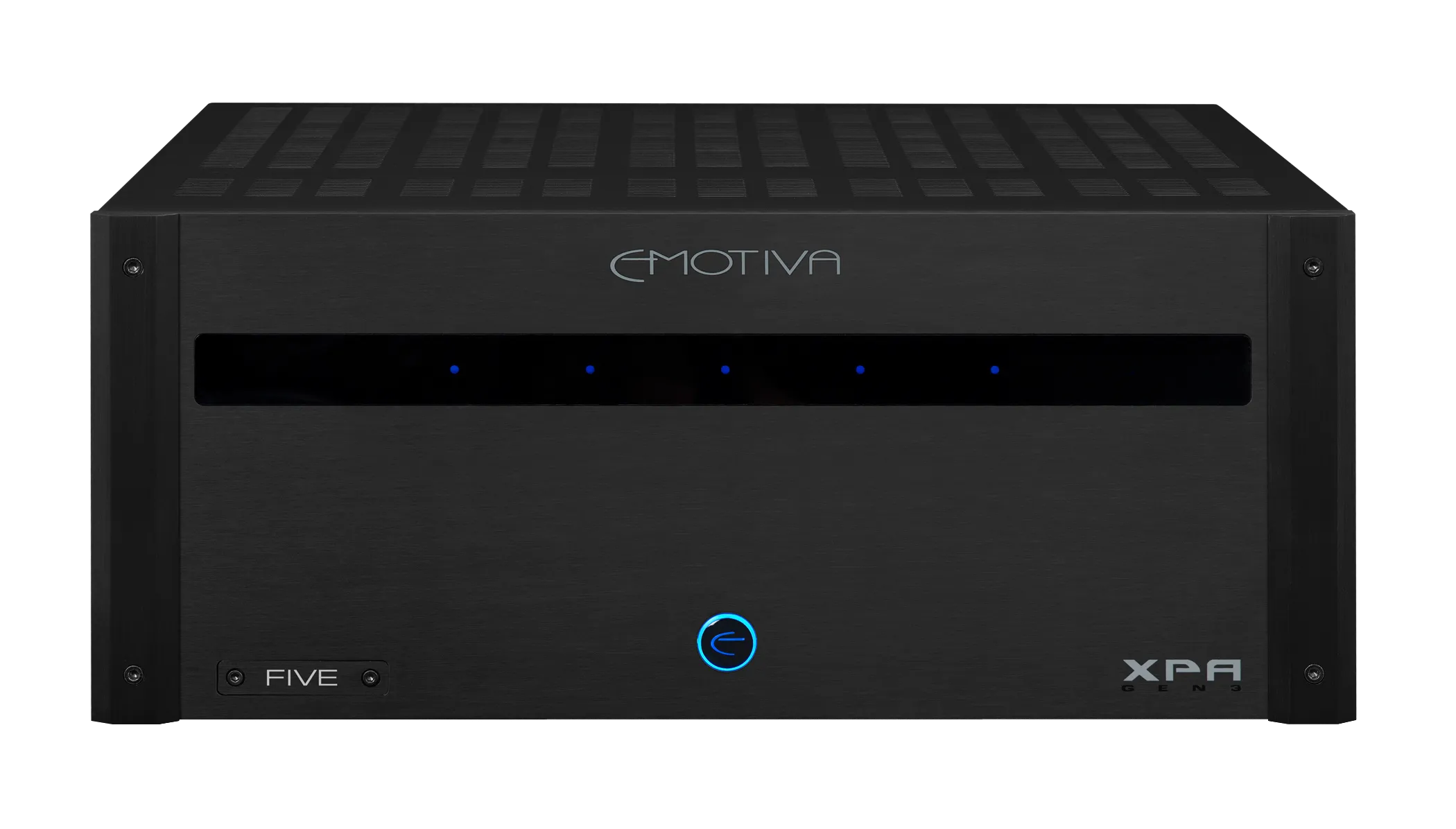

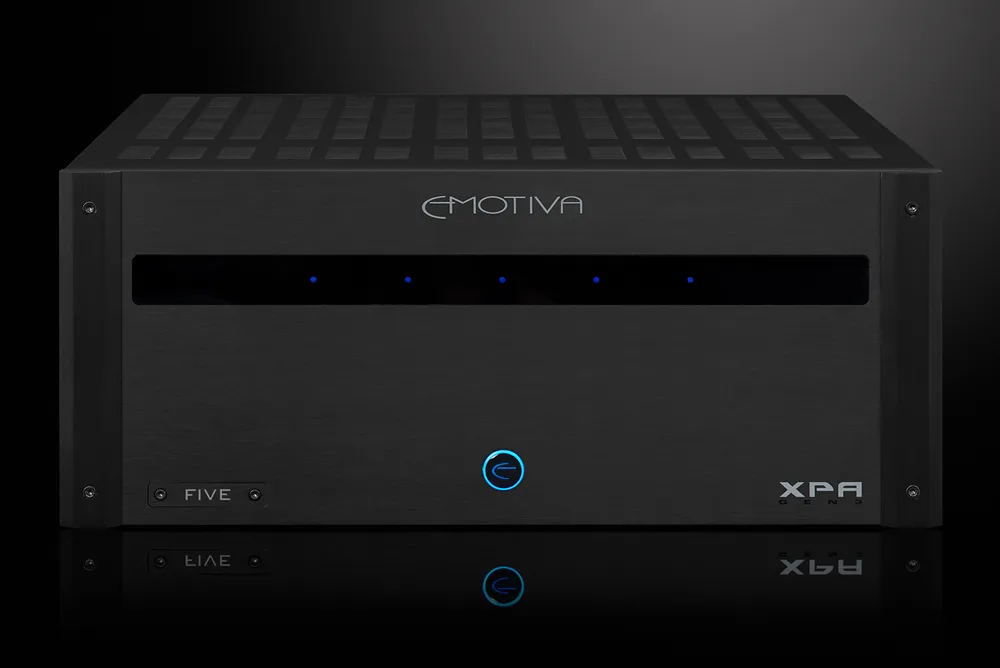

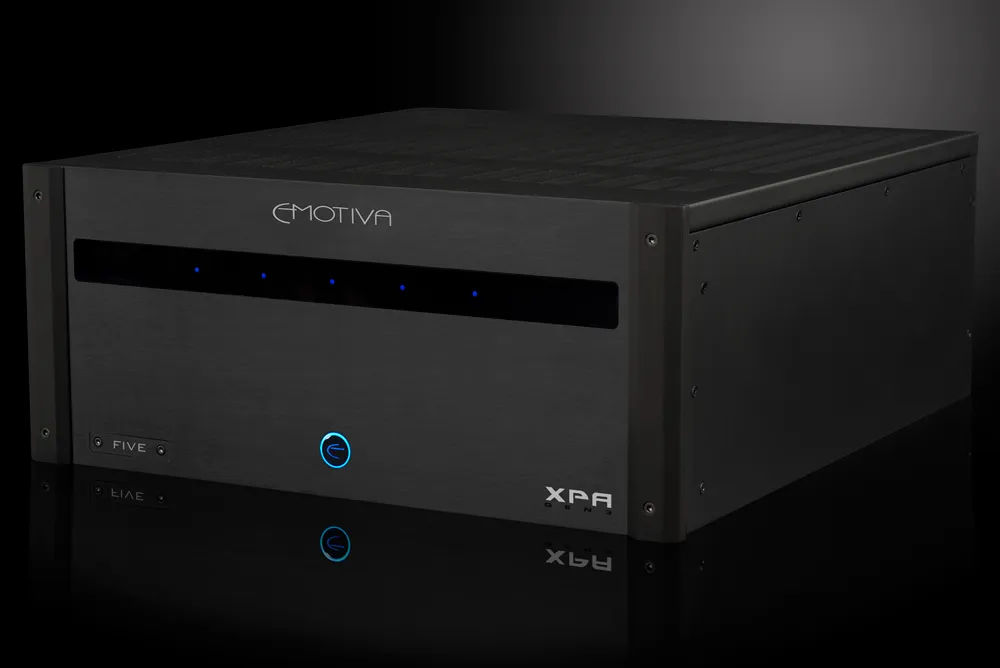

The new XPA-5 is a five-channel audiophile quality power amplifier, and is perfect for powering the five main bed channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system.

Warranty:

5-year manufacturer's warranty

Features:

Audiophile grade Class A/B output stages and a massive silent switch mode power supply
Five high-powered single channel modules.
Plenty of power for a great 5.1 channel surround sound system.
Pair with an XPA-DR2 for a powerful 7.1 channel system.

Video Review:

REGULATED SWITCH MODE POWER SUPPLY (SMPS)

One of the design enhancements shared by all of Emotiva’s new XPA power amplifiers is their new, specially designed, high current, switch mode power supply (SMPS). Emotiva’s powerful, intelligent new power supply offers all of the benefits of a classic transformer-based design, but avoids virtually all of the limitations. It can deliver over 3 kW of fully regulated power, which ensures optimum performance under a wide range of load conditions, and plenty of dynamic power to ensure that musical peaks will never be compressed or limited. However, it’s also more efficient, more reliable, and much lighter.

CLASS A/B SOUND QUALITY MEETS OPTIMIZED CLASS H EFFICIENCY
The High-Powered Single Channel Modules used in the XPA-5 utilize a fully analog Class A/B output stage, and Emotiva’s highly regarded Soft-Switch™ Optimized Class H power supply topology, which increases their efficiency significantly without compromising their superb Class A/B performance and sound quality. At low power levels, each channel operates on a relatively low supply voltage, to minimize quiescent power consumption and standby power losses. Then, when the demand for power increases, it instantly and seamlessly switches to a higher voltage rail to ensure that the signal passes cleanly and without clipping. This process happens on a continuous basis - in real time, allowing greater overall efficiency, cooler operation, longer component life, reduced power consumption, and increased reliability.

Technical Specifications:

Power Output:	300 watts RMS/channel; 20 Hz – 20 kHz; THD<0.1%; 8 Ohms; one channel driven. 550 watts RMS/channel; 20 Hz – 20 kHz; THD<0.2%; 4 Ohms; one channel driven. 300 watts RMS/channel; THD<0.1%; 8 Ohms; two channels driven. 490 watts RMS/channel; THD<0.1%; 4 Ohms; two channels driven. 250 watts RMS/channel; THD<0.1%; 8 Ohms; ALL FIVE channels driven.
Power Bandwidth (at rated power; 8 Ohm load)	20 Hz to 20 kHz ( / – 0.1 dB)
Broad Band Frequency Response	5 Hz to 80 kHz 0/-2 dB
THD noise	< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms
Signal to Noise Ratio (8 Ohm load):	> 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted).
Minimum Recommended Load Impedance (per channel)	4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads)
Damping Factor (8 Ohm load)	> 500
Input Sensitivity (for rated power; 8 Ohm load)	1.5 V
Gain	29 dB
Input Impedance	33 kOhms (balanced) 23.5 kOhms (unbalanced)

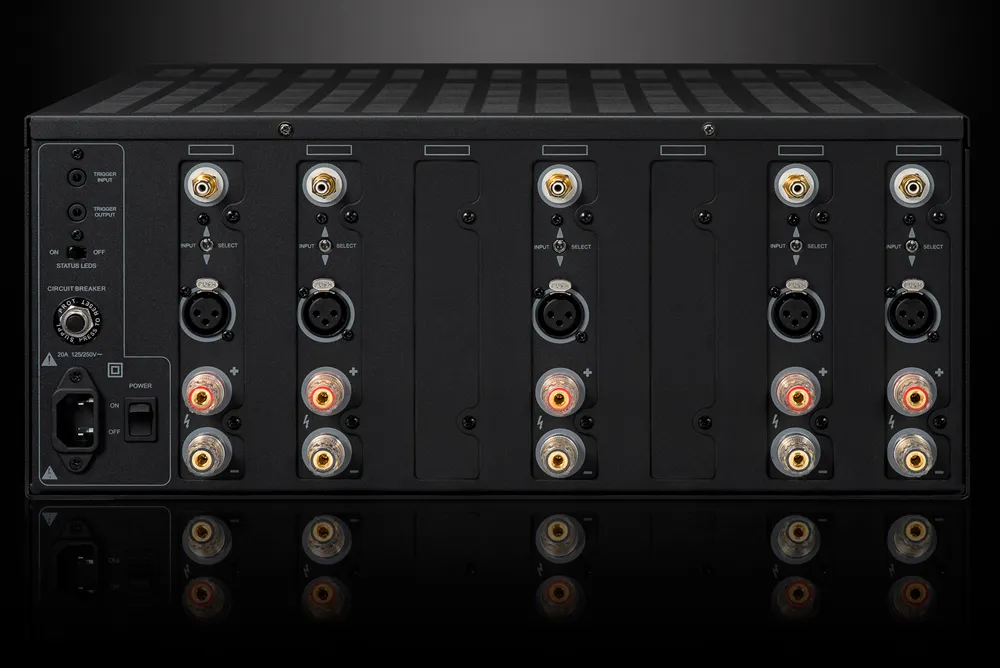

Input Connections (High-Powered Single Channel Modules)	Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable
Input Connections (Stereo Modules)	2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable
Speaker Output Connections	Audiophile grade, gold plated, 5-way binding posts
Trigger Input	5 – 12 V (AC or DC); <10 mA input current required.
Trigger Output	12 VDC; can drive any load up to 120 mA.
Dimensions	17” wide x 8” high x 19” deep (unboxed; including feet). 17” wide x 7” high x 19” deep (unboxed; without feet). 24-1/2” wide x 12” high x 24-3/4” deep (boxed).
Weight	21 Kg
