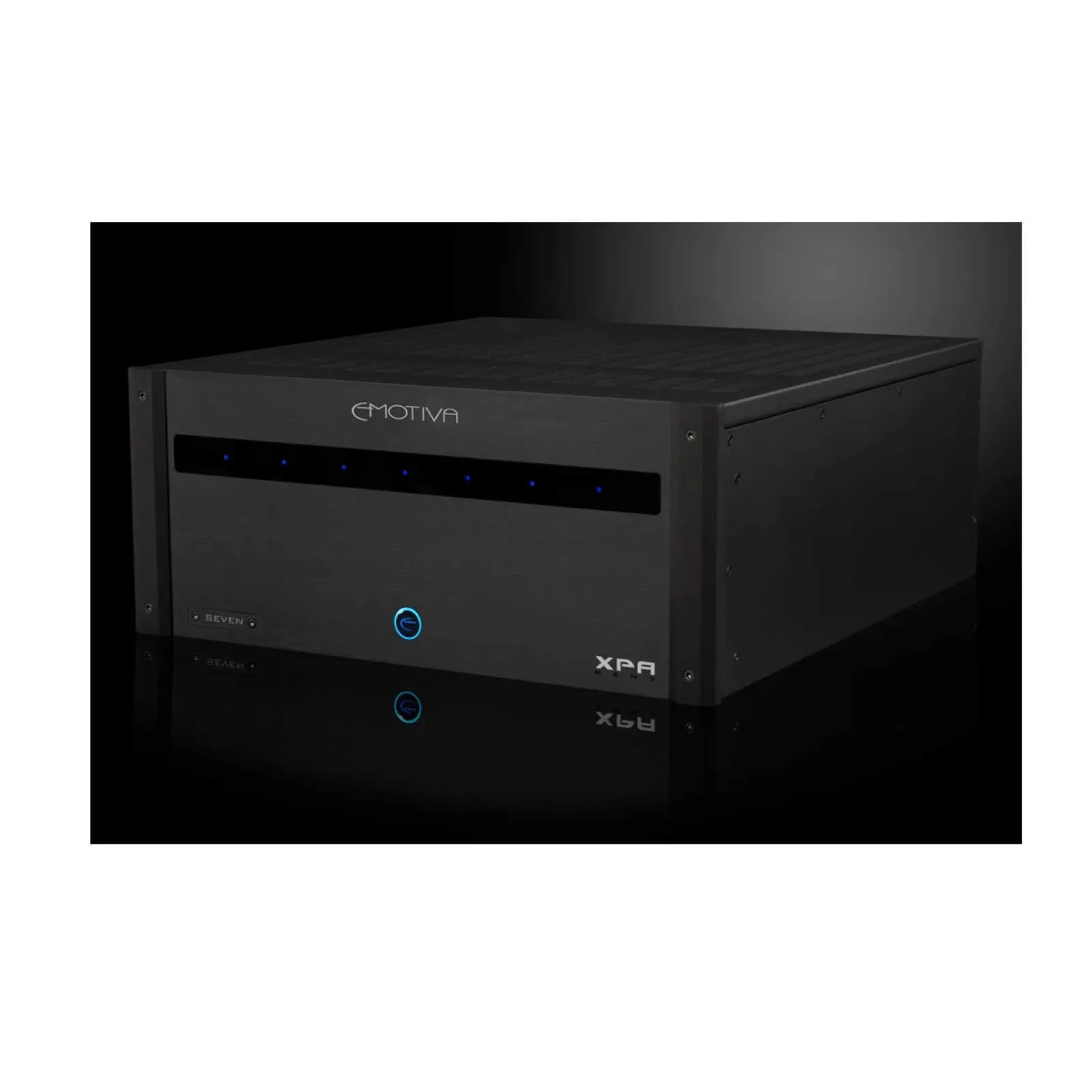

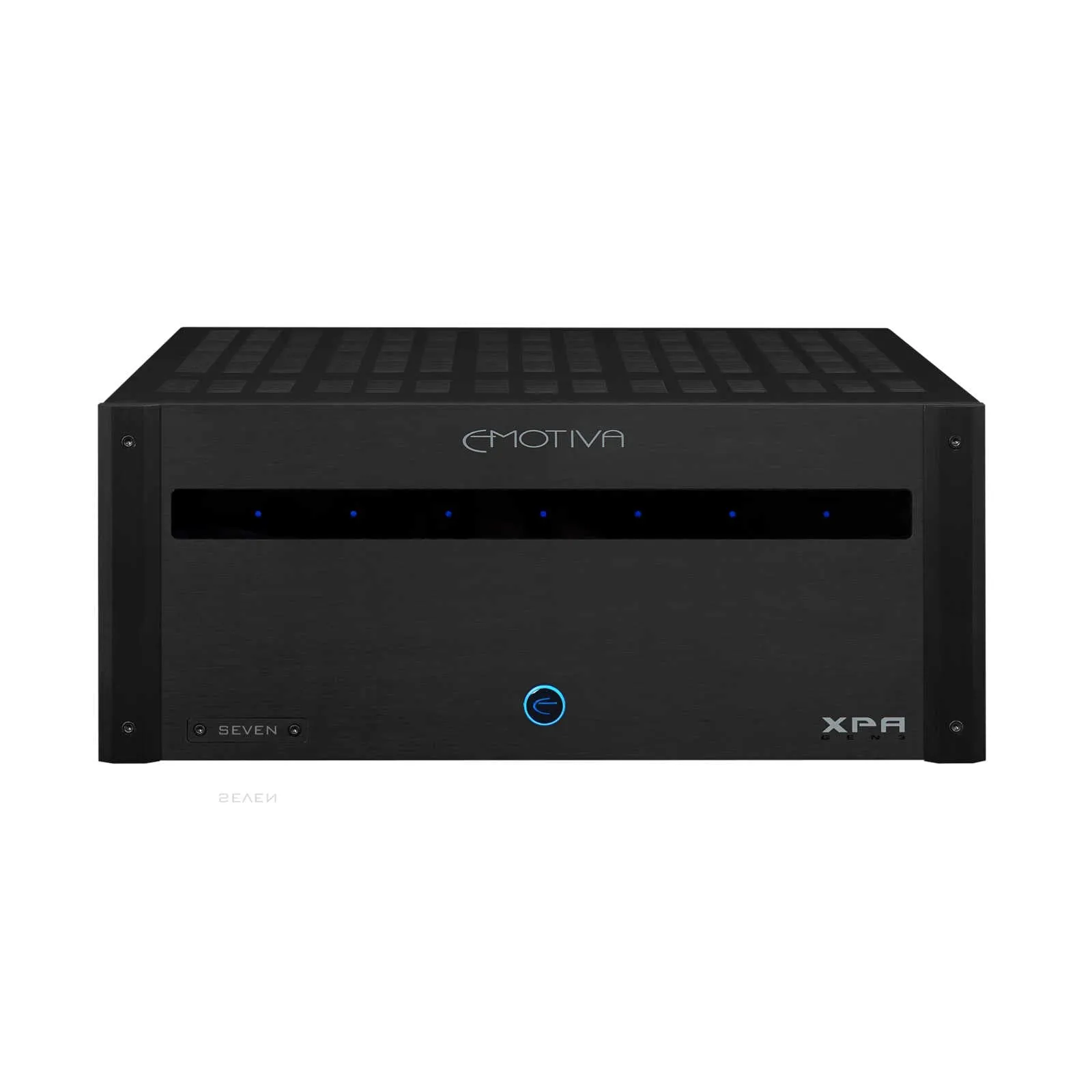

The new XPA-7 is a seven-channel audiophile quality power amplifier, and is perfect for powering the seven main bed channels of a 5.1 channel, 7.1 channel, or Dolby Atmos / DTS:X home theater system
Warranty:
2-year manufacturer's warranty
Features:
- Audiophile grade Class A/B output stages and a massive silent switch mode power supply.
- Seven high-powered single channel modules.
- Plenty of power for a great 7.1 channel surround sound system.
- Use with an XPA-4 or a BasX A4 in a great 11.1 channel system.
Video Review:
REGULATED SWITCH MODE POWER SUPPLY (SMPS)
One of the design enhancements shared by all of Emotiva’s new XPA power amplifiers is their new, specially designed, high current, switch mode power supply (SMPS). Emotiva’s powerful, intelligent new power supply offers all of the benefits of a classic transformer-based design, but avoids virtually all of the limitations. It can deliver over 3 kW of fully regulated power, which ensures optimum performance under a wide range of load conditions, and plenty of dynamic power to ensure that musical peaks will never be compressed or limited. However, it’s also more efficient, more reliable, and much lighter.
CLASS A/B SOUND QUALITY MEETS OPTIMIZED CLASS H EFFICIENCY
The High-Powered Single Channel Modules used in the XPA-7 utilize a fully analog Class A/B output stage, and Emotiva’s highly regarded Soft-Switch™ Optimized Class H power supply topology, which increases their efficiency significantly without compromising their superb Class A/B performance and sound quality. At low power levels, each channel operates on a relatively low supply voltage, to minimize quiescent power consumption and standby power losses. Then, when the demand for power increases, it instantly and seamlessly switches to a higher voltage rail to ensure that the signal passes cleanly and without clipping. This process happens on a continuous basis - in real time, allowing greater overall efficiency, cooler operation, longer component life, reduced power consumption, and increased reliability.
Technical Specifications:
|
Power Output |
|
|
Power Bandwidth (at rated power; 8 Ohm load) |
20 Hz to 20 kHz ( / – 0.1 dB) |
|
Broad Band Frequency Response |
5 Hz to 80 kHz 0/-2 dB |
|
THD noise: |
< 0.005%; at 100 watts RMS; 1 kHz; 8 Ohms |
|
Signal to Noise Ratio (8 Ohm load) |
> 117 dB; ref FTC rated power; unbalanced input (A-weighted). > 91 dB; ref 1 watt; unbalanced input (A-weighted) |
|
Minimum Recommended Load Impedance (per channel) |
4 Ohms (which equals one 4 Ohm load or two paralleled 8 Ohm loads) |
|
Damping Factor (8 Ohm load) |
> 500 |
|
Input Sensitivity (for rated power; 8 Ohm load) |
1.5 V |
|
Gain |
29 dB |
|
Input Impedance |
|
|

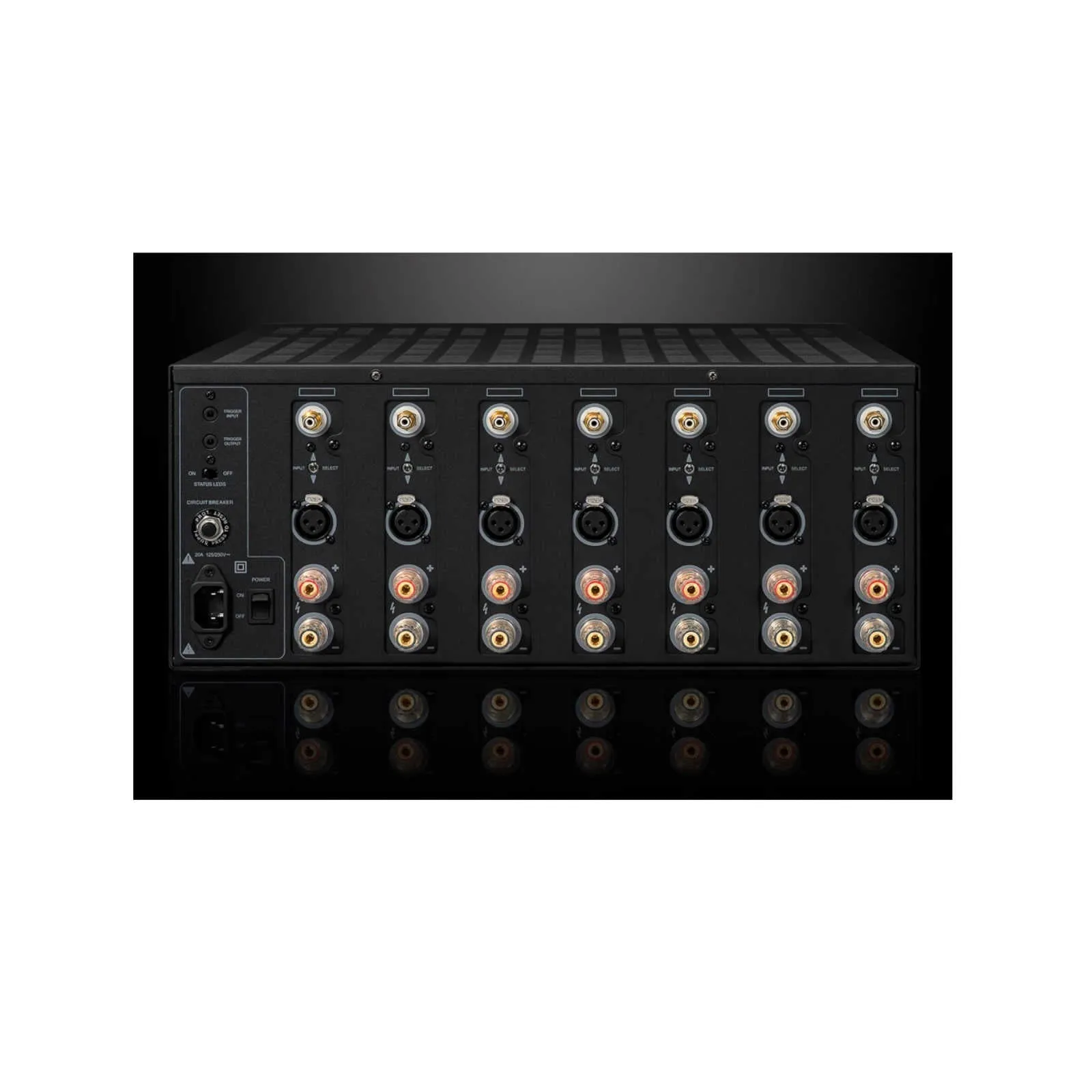

Input Connections (High-Powered Single Channel Modules) |
Unbalanced (RCA); balanced (XLR); one each per channel, independently selectable |
|
Input Connections (Stereo Modules) |
2 Unbalanced (RCA); 2 balanced (XLR); two per channel, independently selectable |
|
Speaker Output Connections |
Audiophile grade, gold plated, 5-way binding posts |
|
Trigger |
|
|

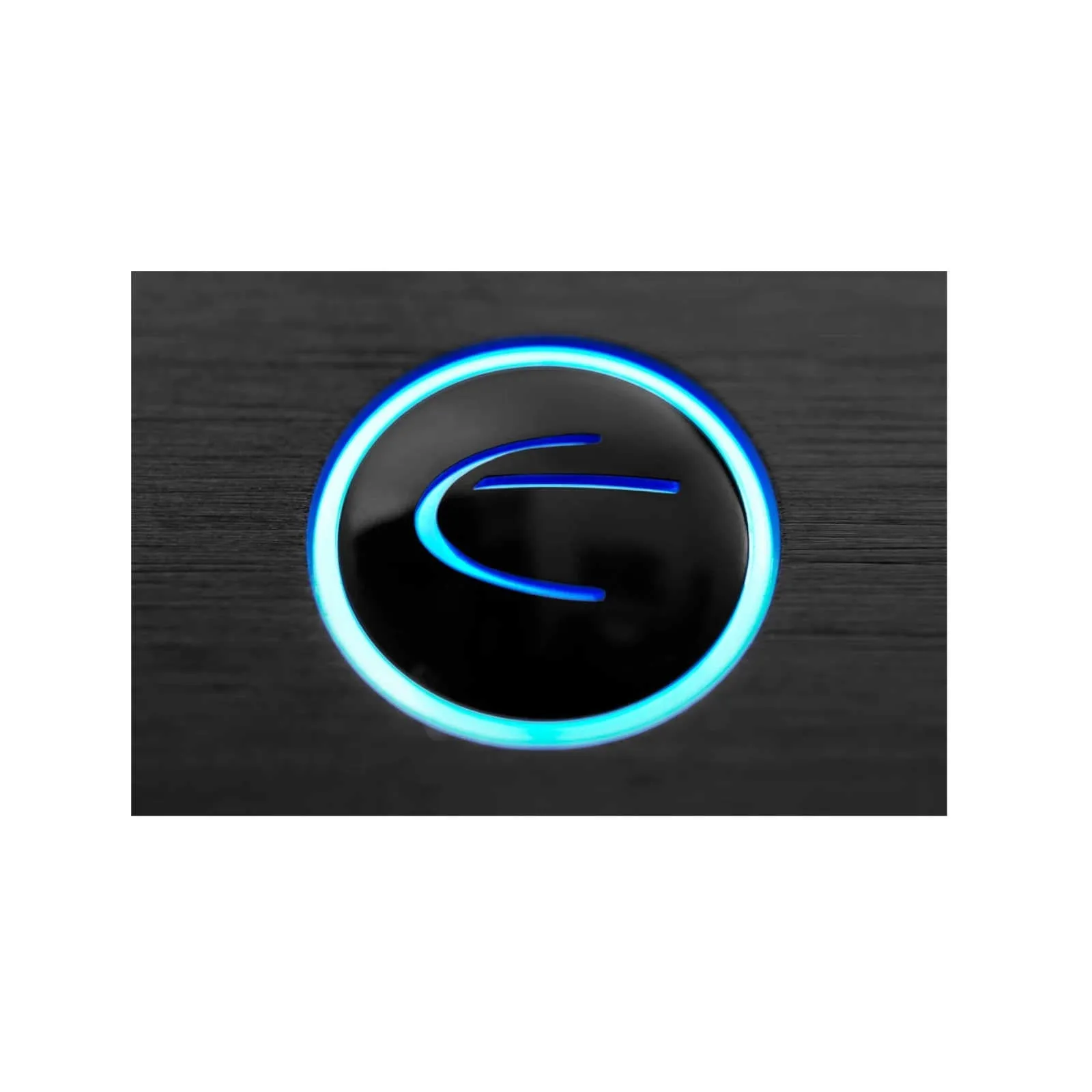

Standby |
push button (halo ring changes color to indicate Standby or On) |
|
Status LEDs |
one per channel; blue. Status LEDs change to red to indicate a fault condition |
|
AC Power switch |
rocker switch (switches AC main power) |
|
Status LEDs switch |
disables front panel Status LEDs and dims Standby button halo |
|
Input selector switches (one per channel) |
metal toggle switches; select between balanced and unbalanced inputs |
|
Circuit Breaker |
press button to reset circuit breaker |
|
Protection |
The XPA Gen3 is protected against excessive operating temperature, shorted speaker connections, ground faults, and other common fault conditions. |
|
Dimensions |
|
|
Weight |
|
