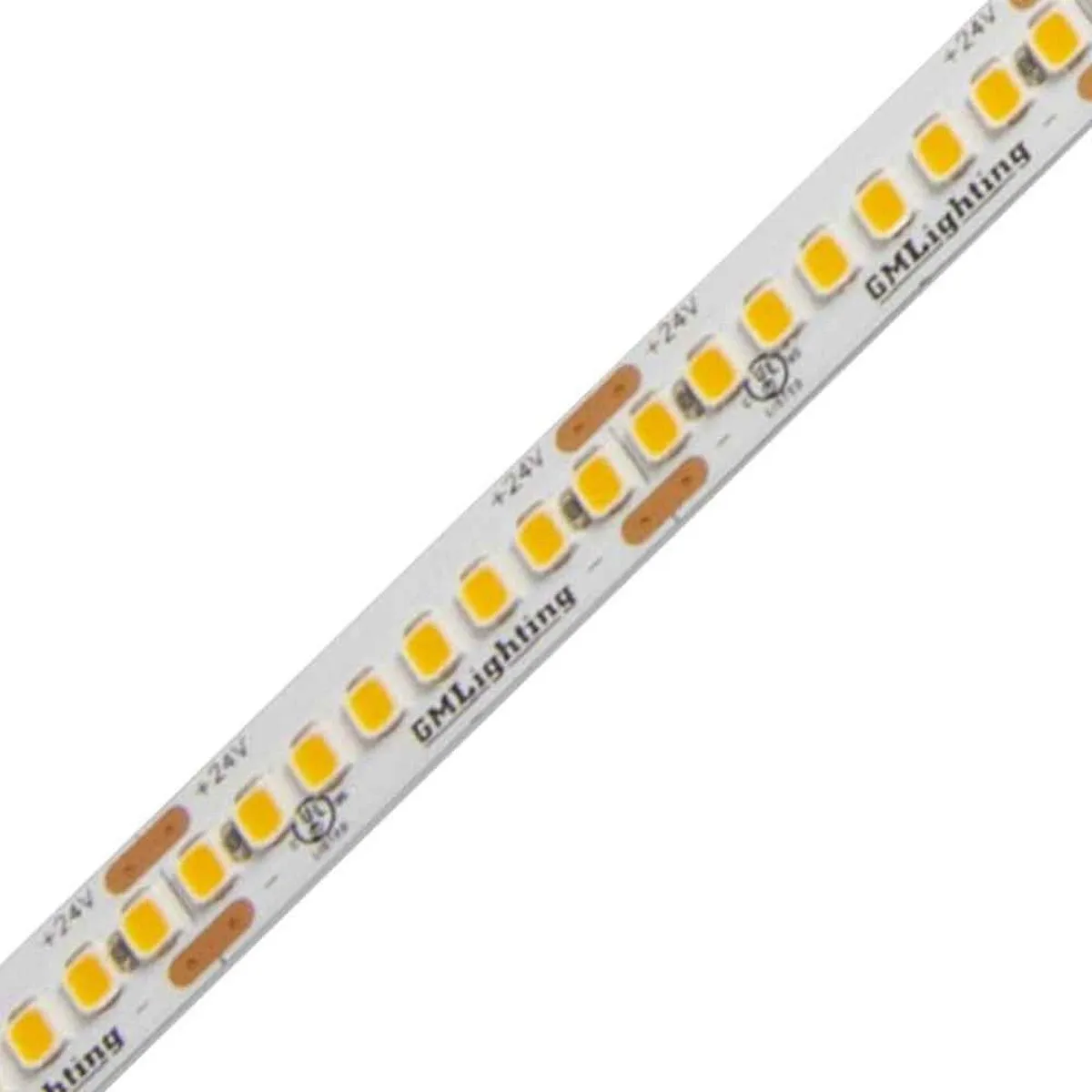

LTR-P Pro Series 5.8W Tape

GM’s 5.8W / 24V Pro Series Flexible LED Tape combines style and technology with reliability. Choose between color temps from 2400K to 5000K. Our Pro Series is exactly what we claim - a professional LED linear solution.

24VDC
5.8W / ft.
90 CRI
2400K, 2700K, 3000K, 3500K, 4000K, 5000K
Remote control with GM’s LUXcontrol™ App and controllers
Dry location
120 LED's per meter
Cuttable every 2"
Custom lengths available
Premium diodes
120° viewing angle
Dimmable
3M adhesive back
Maximum run on a given lead is 16'-4"
Includes Sure-tite connectors
UL certification
Class 2
Closet Rated. Compliant with NFPA 70, NEC section 410.16 (A)(3) and 410.16 (C)(5)
5 year warranty when paired with GM power supply

NOTE: FOR PROPER THERMAL MANAGEMENT, PLEASE USE THIS PRODUCT IN MOUNTING EXTRUSION

Spec Sheet

Info

Catalog No.	Length	Lumens	Wattage	CRI	Color Temp.	Max. Run

LTR-P-24V-5.8W-24K-100	100' (30M)	390	5.8W	90	2400K	16'-4"
LTR-P-24V-5.8W-27K-100	100' (30M)	404	5.8W	90	2700K	16'-4"
LTR-P-24V-5.8W-30K-100	100' (30M)	423	5.8W	90	3000K	16'-4"
LTR-P-24V-5.8W-35K-100	100' (30M)	462	5.8W	90	3500K	16'-4"
LTR-P-24V-5.8W-40K-100	100' (30M)	473	5.8W	90	4000K	16'-4"
LTR-P-24V-5.8W-50K-100	100' (30M)	493	5.8W	90	5000K	16'-4"

Kelvin temp. =/-100K. 16'-4" and 100' reel includes 24" lead affixed to tape. 16'-4" reel includes (3) ESTW-60 Sure-Time connectors. 100' reel includes (10) ESTW-60 Sure-Time connectors.
