Model#: 207669
Easily distribute a single Ultra-High-Definition (UHD) signal to multiple displays.

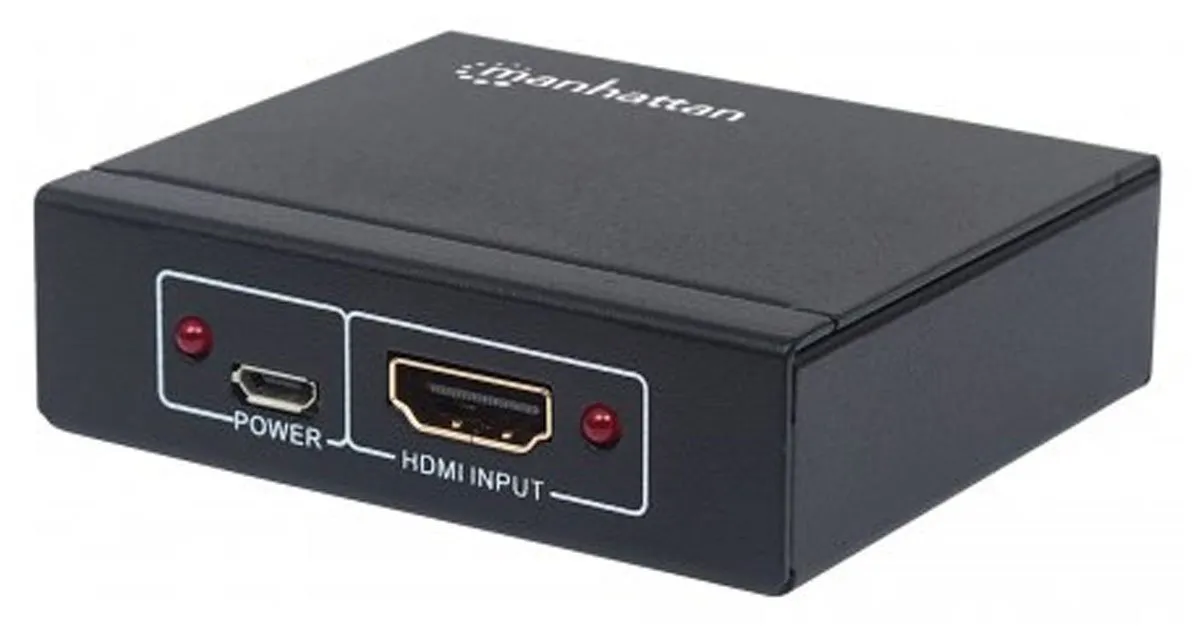

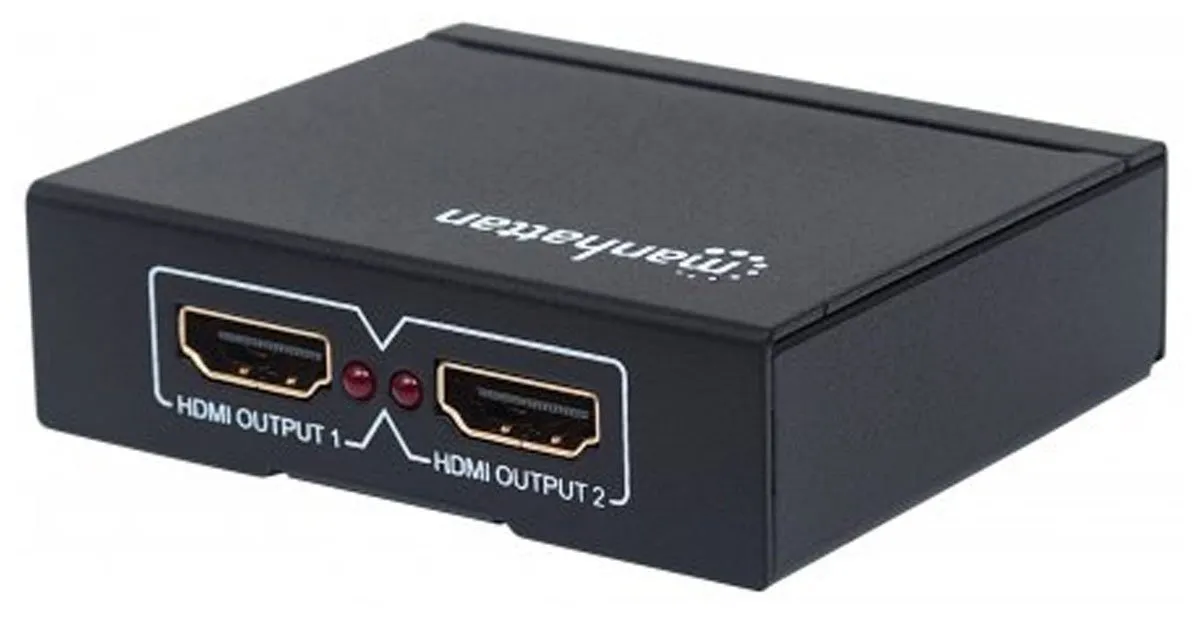

The Manhattan 4K 2-Port HDMI Splitter with built-in booster streams a 4K HDMI signal from a single UHD source to up to two UHD displays.
Flexible Solution for Many A/V Applications
Ideal for trade shows, classrooms, video conferencing, presentations and retail applications, the Manhattan 4K 2-Port HDMI Splitter features a built-in booster for added signal strength. It’s a good choice for splitting and distributing a synchronous signal to multiple 4K HDMI displays when source equipment is remotely stored in a secured room or cabinet. Cascade multiple units up to three levels to output HDMI video/audio on additional displays in widely distributed applications.
Quality Construction and Easy Installation
Full compliance with HDMI, HDCP 1.4 and DVI 1.0 ensures that the Manhattan 4K 2-Port HDMI Splitter can provide long service and reliable performance. Quickly connect HDMI cables (not included) and the AC power adapter, and this affordable UHD solution is complete — no software/hardware configuration or complicated settings required.
- Supports 720p, 1080p, 1200p, 2160p (4K) Signals
- Maximum single-link range: 3840x2160 at 30 Hz, 4096x2160 at 24 Hz resolution
- Amplifier max bandwidth 10.2 Gpbs
- Supports compressed DTS-HD Master Audio and 7.1 surround sound
- HDCP 1.4 compliant signal transmission
- Supports 48-bit Deep Color (12-bits per channel) and xvYCC (x.vColor)
- 3.0" x 1.9" x 0.6"
