Product Details
＋
The In-Wall Speaker Enthusiast Package from iElectronics.com has everything the true Audio Enthusiast needs to create a 7.1 In-Wall Surround Sound experience. Created and designed around the Audio Enthusiast each SpeakerCraft product was hand selected to give the True Enthusiast the best possible quality at the right price.
iElectronics.com Is an Authorized Custom Integrator, Retail Sales, and Online Retail Sales Channel for SpeakerCraft. All manufacturers warranties are honored with all products purchased from iElectronics.

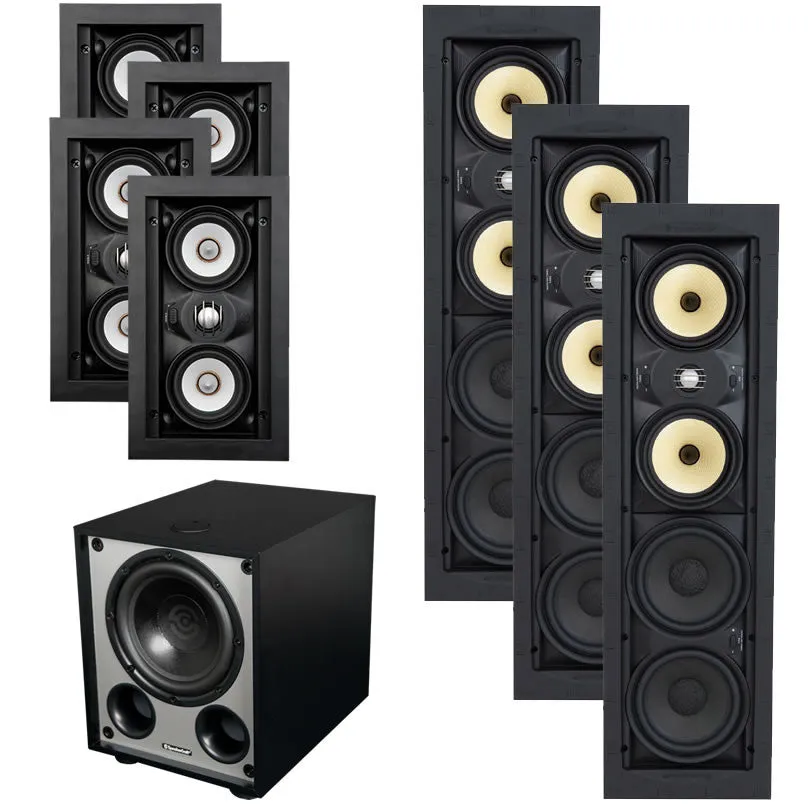

The In-Wall Speaker Enthusiast Package Includes:
3 ea. SpeakerCraft ASM59105 Profile AIM Cinema Five
- Flangeless Appearance
- Pivoting 1" Aluminum/Magnesium Dome Tweeter
- Two 5¼" Kevlar Cone Woofers with Phase Plugs
- Two 6" Kevlar Impregnated Paper Cone Woofers
- Front-Mounted Treble, Mid & Bass Adjustment Switches
- Bi-Amping Feature
- Timbre-Matched to All Five Series Speakers
- Sensitivity: 91dB 1W/1m
- Impedance: 8 Ohms Compatible
- Frequency Response: 35Hz - 20kHz
- Dimensions: (H x W x D) 30 1/4" x 9" x 4" (768 mm x 229 mm x 102 mm) (with Grille))
- Wall Cut-Out: (H x W) 28 3/4" x 7 1/2" (730 mm x 191 mm)
4 ea. SpeakerCraft ASM54631 Profile AIM LCR3 Three
- Flangeless Appearance
- Pivoting Woofer Baffle
- Two 3" Aluminum Cone Woofers with Phase Plugs
- Pivoting ¾" Aluminum Dome Tweeter
- Front-Mounted 2-Position Treble Adjustment Switch
- Timbre-Matched to All Three Series Speakers
- Sensitivity: 86dB 1W/1m
- Power Handling: 60 Watts
- Impedance: 8 Ohms Compatible
- Frequency Response: 78Hz - 20kHz
- Dimensions: (H x W x D) 10-1/4" x 6" x 3" (260 mm x 152 mm x 76 mm)
- Wall Cut-Out: (H x W) 9" x 4-3/4" (227 mm x 120 mm)
1 ea. SpeakerCraft ASM99012 V12 Subwoofer
- Built-In 250 Watt Amplifier
- 12" Long Throw Woofer
- Auto Power Via Signal Sensing
- Cabinet Top Mounted Recessed Volume Control
- Magnetically Shielded
- Frequency Response: 28Hz - 200Hz
- LFE (Low Frequency Effects) Input
- Overload Protection Circuit
- Dual Voltage Switch 115/230v
- Dimensions: (H x W x D) 19"* x 15" x 16 1/2"** (483 mm x 381 mm x 419 mm)
- Weight: 44 lbs. (19.96kg)
*Add 13/16" for feet (21 mm)
** Measurement does not include binding posts / banana plug connectors. Please allow another 4" (102 mm) for cable connections.
