The In-Wall Speaker Starter Package from iElectronics.com has everything the true you need to create a value based 5.1 In-Wall Surround Sound experience.Created and designed around the home theater starter each SpeakerCraft product was hand selected to give you the best possible quality at the right
price.
iElectronics.com Is an Authorized Custom Integrator, Retail Sales, and Online Retail Sales Channel for SpeakerCraft. All manufacturers warranties are honored with all products purchased from iElectronics.

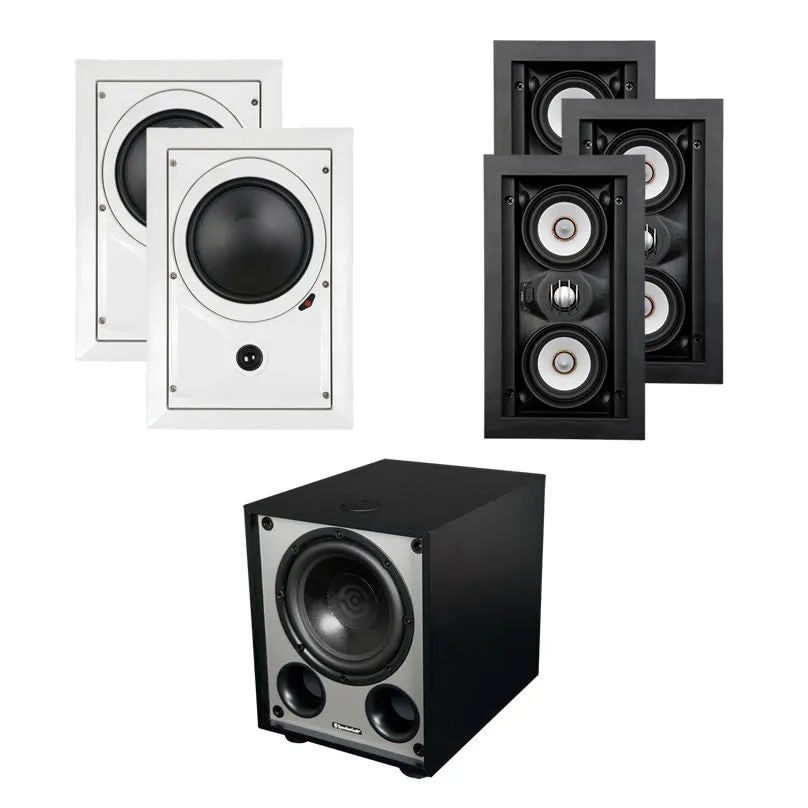

The In-Wall Speaker Enthusiast Package Includes:
3 ea. SpeakerCraft ASM54633 Profile AIM LCR 3
- Flangeless Appearance
- Pivoting Woofer Baffle
- Two 5 1/4" Aluminum/Magnesium Cone Woofers with Phase Plugs
- Pivoting 1" Aluminum/Magnesium Dome Tweeter
- Front-Mounted Switches Allow for up to ±3dB of Bass and Treble Adjustment
- Timbre-Matched to All Three/Four Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 100 Watts
- Impedance: 8/6 Ohms, Depending on Switch Settings
- Frequency Response: 50Hz - 20kHz
- Dimensions: (H x W x D) 17 1/8" x 9" x 4" (235 mm x 443 mm x 102 mm) (with Grille)
- Wall Cut-Out: (H x W) 7 1/2" x 14 1/4" (190 mm x 362 mm)
2 ea. SpeakerCraft ASM68710 AccuFit IW7 One
- 7" Polypropylene Cone Woofer with Rubber Surround
- Pivoting 1" Resin Coated Silk Dome Tweeter
- Sealed Steel Enclosure
- Timbre-Matched to All One Series Speakers
- Sensitivity: 90dB 1W/1m
- Power Handling: 100 Watts
- Impedance: 8 Ohms
- Frequency Response: 40Hz - 20kHz
- STL (Sound Transmission Loss) Feature*
- Dimensions: (H x W x D) 14 1/2" x 9 7/8" x 2 3/4" (368 mm x 251 mm x 70 mm)
- Wall Cut-Out Dimensions: (H x W) 12 3/4" x 8 1/8" (324 mm x 206 mm)
* STL @ A-weighted sound reduction: 27dBA / Measuring signal: Pink Noise
1 ea. SpeakerCraft V8 - 8" Floor Standing Subwoofer
- Built-In 80 Watt Amplifier
- 8" Long Throw Woofer
- Auto Power Via Signal Sensing
- Cabinet Top Mounted Recessed Volume Control
- Magnetically Shielded
- Frequency Response: 45Hz - 200Hz
- LFE (Low Frequency Effects) Input
- Overload Protection Circuit
- Dual Voltage Switch 115/230v
- Dimensions: (H x W x D) 12 1/2"* x 10 3/4" x 15 1/4"** (318 mm x 273 mm x 388 mm)
- Weight: 24 lbs. (10.89kg)
- *Add 13/16" for feet (21 mm)
** Measurement does not include binding posts / banana plug connectors. Please allow another 4" (102 mm) for cable connections.mm)
