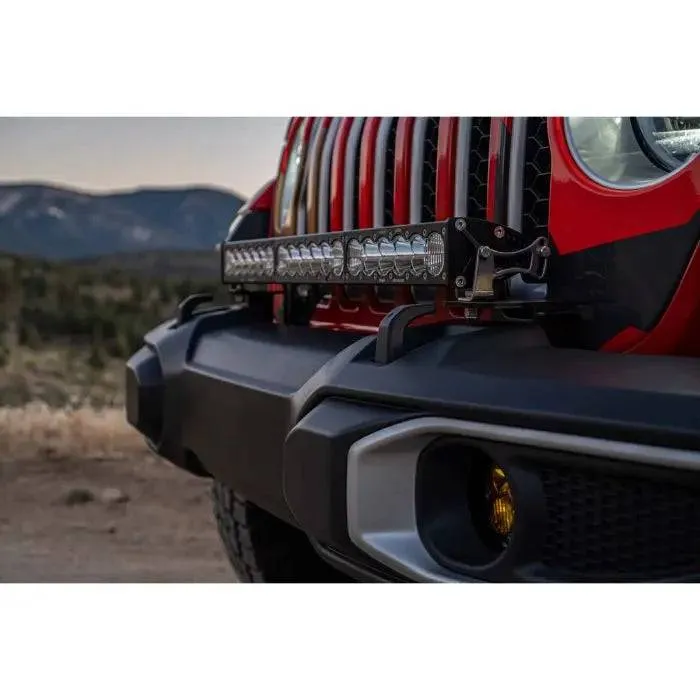

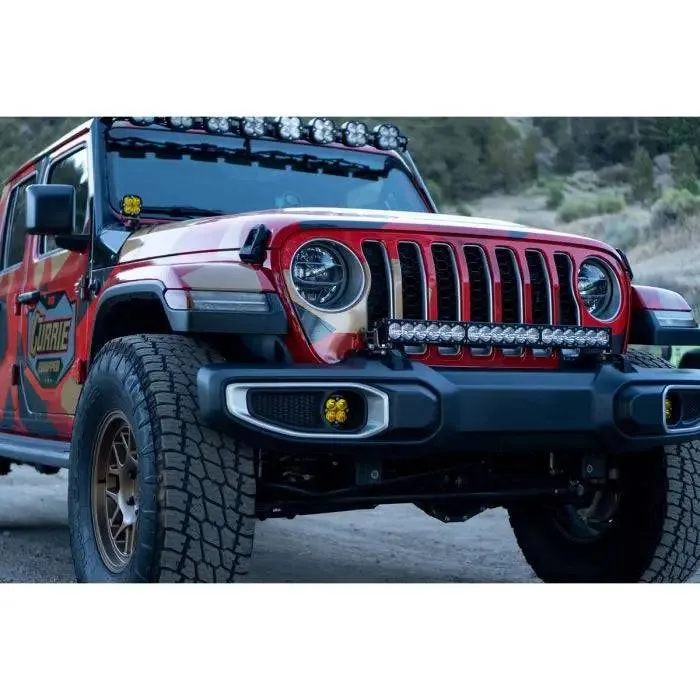

This Baja Designs lighting and wiring setup has been tested on the Jeep JL / JT with the plastic bumper to take the guess work out of installation!

At an impressive 31,910 lumens, the brightest just got up to 69% brighter.  The OnX6 LED light bar also integrates Baja Designs’ trademarked High Speed Spot™ reflector, the same one used by Team Enlightened racers, to give you the guaranteed furthest projecting LED Light Bar on the planet.  In addition, the OnX6 LED light bar adopts industry standard sizing and is now compatible with aftermarket mounting systems. An industry first 30 Day Satisfaction Guarantee & Limited Lifetime Warranty is included for the ultimate in purchase protection.

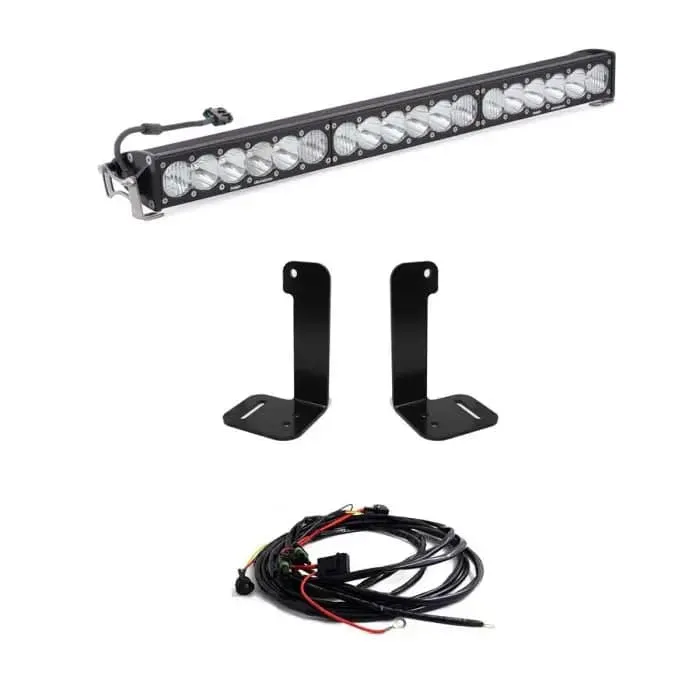

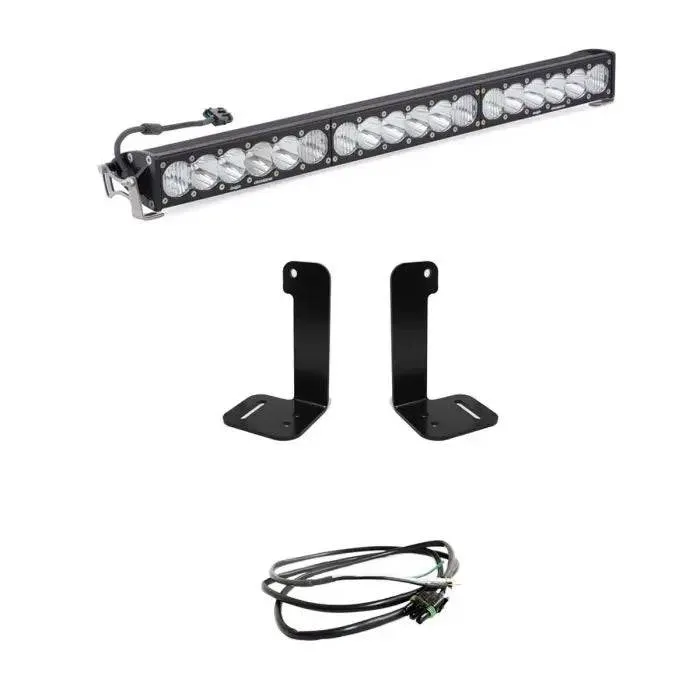

Includes:

• OnX6 30” LED Light Bar
• QTY (1) Wiring Harness (447657 only)
• QTY (1) Upfitter (447657UP only)
• Mounting Brackets
• Hi-Low Dongle

Features:

• Battery Management Technology - Elimination of Flickering at Low Voltage

• Battery Management Technology - Added Protection to Vehicle Wiring and Systems

• Battery Management Technology - Protection from Dangerous Current Spikes

• Battery Management Technology - The OnX6 LED Light Bar is BRIGHTER. BOLDER. BETTER.
• Satisfactions Guarantee – 30 Day Money BackGuarantee

• Limited Lifetime Warranty – Complete Purchase Protection

• uService® – Replaceable Lenses And Optics

• ClearView® – All The Light, Right Where You Need It.

• MoistureBlock™ – Waterproof, Rain Proof, Submersible

• CopperDrive® – Only LED Driven At 100%

• 5000K Daylight – Less Driver Fatigue, Natural Color

Driving/Combo: Maximum trail coverage in a single light.  The Driving/Combo pattern is equipped with both Wide Driving (42°) and the spot (6°) optics to provide you with a smooth blend of light for both near field applications and distance (Lighting Zone 3)

Specifications:

• Lumens: (High) 31,910 (Low) 25,450 Utilizing 18 Cree LEDs

• Wattage/Amps: (High) 281W / 21.7A (Low) 225W / 17.1A

• Dimensions: 30" x 4.29" x 2.69"

• Weight: 11.45 lbs

• LED Life Expectancy: 49,930 Hours

• Front Lens: Hard Coated Polycarbonate

• Housing: Aircraft Grade Aluminum w/Mil-Spec Hard Anodize

• Bezel: Billet Machined Aluminum

• Hardware & Bracket Material: Stainless Steel

• Exceeds MIL-STD810G (Mil-Spec Testing)

• Built-In Overvoltage Protection

• IP69K (Waterproof up to 9ft & Pressure Washable)

• IK10 Compliant (Mechanical Impact Testing)
