Marantz CINEMA 60 7.2 Channel 100 WPC AV Receiver

High-performance 7.2 channel AV receiver with 100 watts per channel amplification, Dolby Atmos, DTS:X, 8K Ultra HD, and HEOS built-in streaming. CINEMA 60 is the new standard of foundational luxury home theater.

Key Features

Peerless Performance
Immersive spaciousness, warm and rich tone, and lifelike dynamics are legendary hallmarks of Marantz sound.
Technology Leader
CINEMA 60 comes packed with the latest immersive audio formats, 8K video, room optimization, streaming, and more technology to simplify and elevate your enjoyment.
Exquisite Slimline Design
A modern expression of timeless design principles, CINEMA 60 includes our iconic porthole, symmetry, and visual cues representing legendary Marantz quality.

Features

Performance
The Marantz Sound Master meticulously tuned CINEMA 60 for amazing performance with our proprietary HDAM amplification circuitry to create the Most Musical Sound in your home.
Style
Excellence is heard and seen. CINEMA 60 features architectural design that can be featured or remain discreet in any luxurious environment.
Customizability
Thoughtfully selected connectivity options, flexible speaker arrangements, and fine-tuning ability allow you to make CINEMA 60 your own.
Effortless
Included remote, accessible front-panel controls, and an intuitive on-screen setup process make you feel like an expert user right away.

Specifications

Power Amplifier

Number Of Powered Channels: 7
Power Output (8 ohm, 20 Hz - 20 kHz, 0.08% 2ch Drive): 100 W
Power Output (6 Ohm, 1 Khz, 0.7% 2ch Drive): 140 W
Power Output (6 Ohm, 1 Khz, 10% 1ch Drive): 200 W
70% Guarantee: Yes
Discrete Power Amplifier: Yes
Amplifier Topology: Class A/B
Current Feedback Topology: Yes
Bi-amp Drive: Assignable

Multichannel Surround Technologies

DTS: DTS HD Master, DTS:X, DTS Neural:X, DTS Virtual:X
Dolby: Dolby TrueHD, Dolby Atmos, Dolby Atmos Height Virtualization, Dolby Atmos Music, Dolby Surround
Max Number of Processing (Preamp) Channels: 7.2

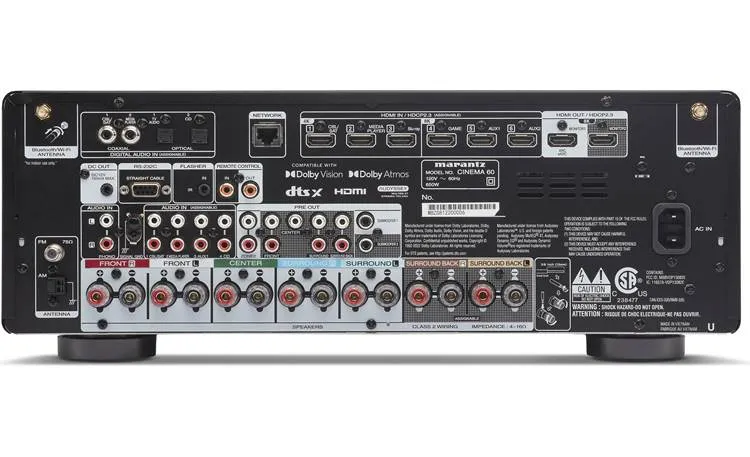

Inputs/outputs

Composite In / Out: 0 / 0
Component In / Out: 0 / 0
HDMI In / Out: 6 / 2
Multi-Room Video Out via HDMI: 0/0
Analog In / Fixed Level Out: 4 in / 0 out
Phono (MM) In: Yes
Digital In: Optical / Coaxial: 2 / 2
Multi-Room Out: analog / digital: 1 / 0
Multichannel Preamp Out: 7.2
Subwoofer Out: 2
7.1 multichannel input: No
Number of Speaker Terminals: 7
Speaker A / B: assignable
Multi-Room Speaker Terminal: assignable
Front Inputs: USB-A
USB Audio: Yes / No / No
FM Tuner with RDS: Yes
DAB Tuner: No

HDMI

Total HDMI Inputs / No. Support 8K: 6 / 3
HDCP2.3 support: Yes
HDMI Outputs: Main / Zone: 2 / 1
Analog to HDMI Video Conversion: No
HDMI Upscaling: 1080P/4K to 8K
Audio Return Channel: eARC
Video Dynamic Range: HDR / HLG / Dolby Vision / HDR10 / Dynamic HDR
ALLM (Auto Low Latency Mode) Pass-through for gaming: Yes
Variable Refresh Rate / Quick Frame Transport: Yes / Yes
HDMI Pass-Through in Standby Mode: Yes
CEC: Yes
DSD Audio over HDMI : No
Auto LipSync: Yes

Performance Technologies

Copper Plated Chassis: No
Toroidal Power Supply Transformer: No
Hyper Dynamic Amplifier Modules (HDAM) (List version): Yes
Pure Direct Mode: Yes
Gold Plated RCA Terminals: Yes
Clock Jitter Reducer: No

Acoustic / Room Correction

Audyssey: MultEQ XT
Audyssey Dynamic EQ / Dynamic Volume: Yes / Yes
Audyssey LFC: No
Dirac Live Support: No
Variable Cross Over: Yes
Optimized Bass Redirection: Yes
Bass Sync: No

Music File Support

Lossy Formats: MP3 / WMA / AAC
Lossless formats: FLAC HD 192/24 / WAV 192/24 / ALAC 192/31
DSD Audio: 2.8MHz / 5.6MHz
Gapless Playback: FLAC, WAV, ALAC, DSD
Compressed Audio Enhancer: MDAX2: Yes
Network Audio Sharing: Yes

Streaming Services

HEOS Multi-room and Streaming: Yes
AirPlay Audio Streaming: Airplay: 2
Internet Radio: TuneIn
Spotify*: Spotify Connect
Pandora: Yes
SiriusXM: Yes
Other Streaming Services*: Amazon Music HD/ Amazon Music / TIDAL / Deezer / Napster / Soundcloud / Mood Mix
Roon tested: Yes

Network Connectivity

Ethernet Ports: Yes
Wi-Fi (include version / band): Yes
Bluetooth (Include version): Yes
Bluetooth Re-transmit for Bluetooth headphones: Yes

Smart Home Integration And Control

Voice Assistant Compatibility: Alexa / Google Voice Assistant / Apple HomePod
App for Smart Phones & Tablets (iOS & Android): Marantz AVR App
HEOS Multi-Room Integrated: Yes
HEOS Link Compatibility: IR/ IP: Yes / Yes
Multi-Room zones: 2
Zone Audio Source: HDMI / Opt, Coax / Network, USB / Analog: 2 Ch / 2 Ch / Yes / Yes
Zone Audio Output: Speaker / Preout: Yes / Yes
Zone HDMI Output from HDMI Source: Yes
Control Connectivity: IP Control / RS232 Control / Web Control / App Control
IR Flasher In: Yes
Marantz Remote Bus: Yes
DC Trigger Output: 1
HDMI Diagnostics: Yes
